Used Equipment

Texas Extrusion Service also provides high-quality used equipment for sale.

Check out our current inventory, which includes extruders, gearboxes, motors, and other various parts.

Need more information? Give us a call at 281‑350‑2288

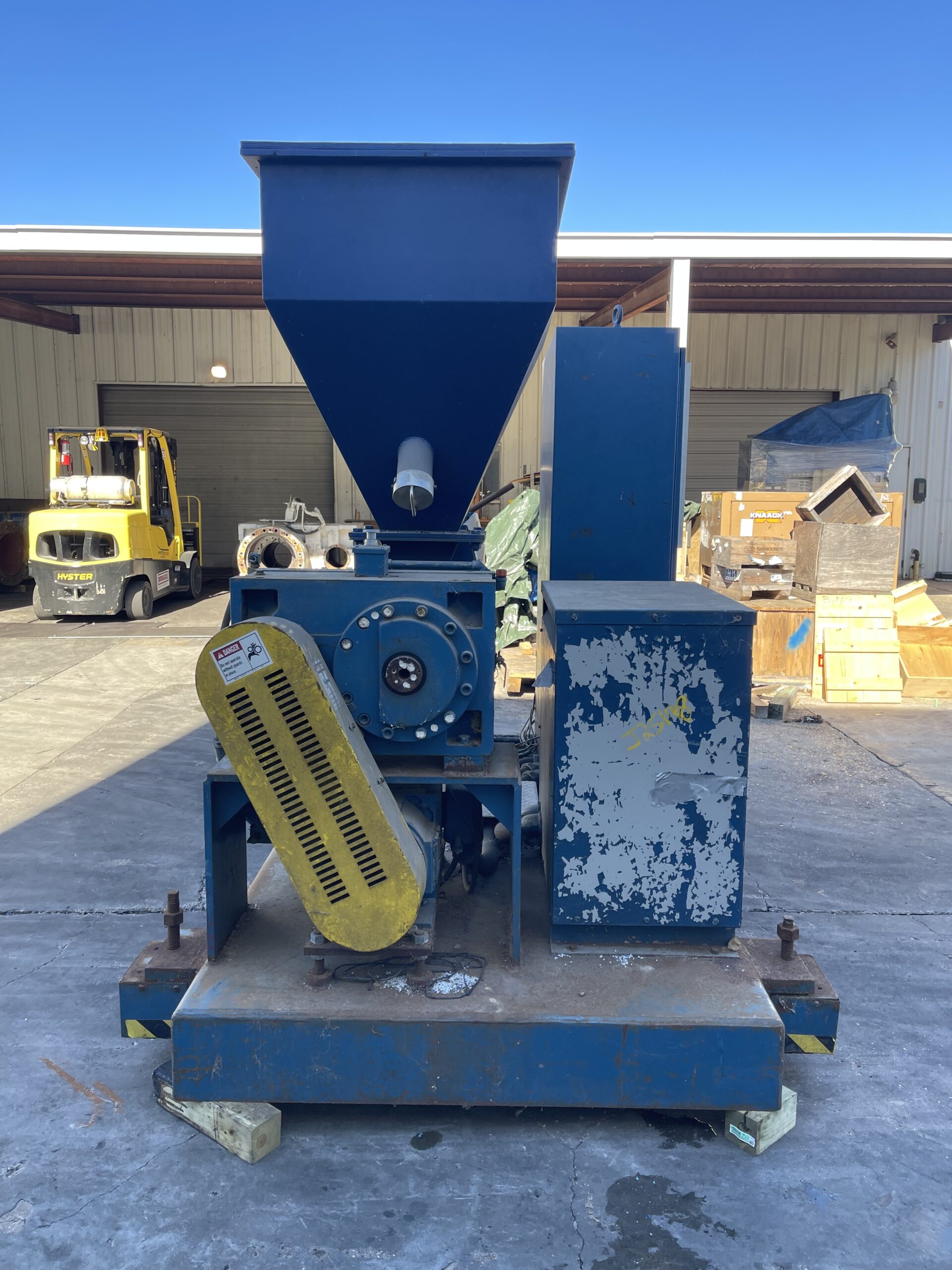

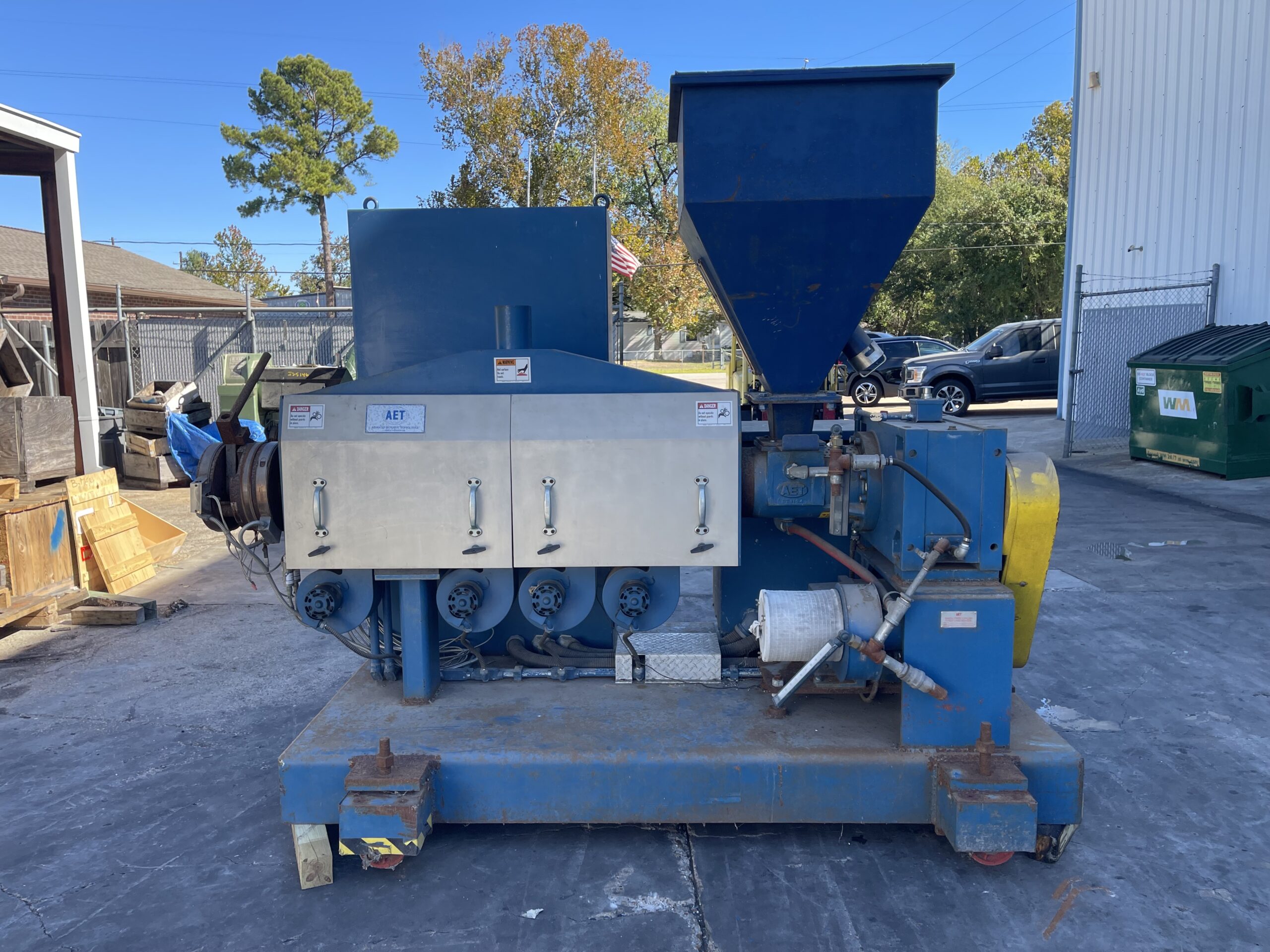

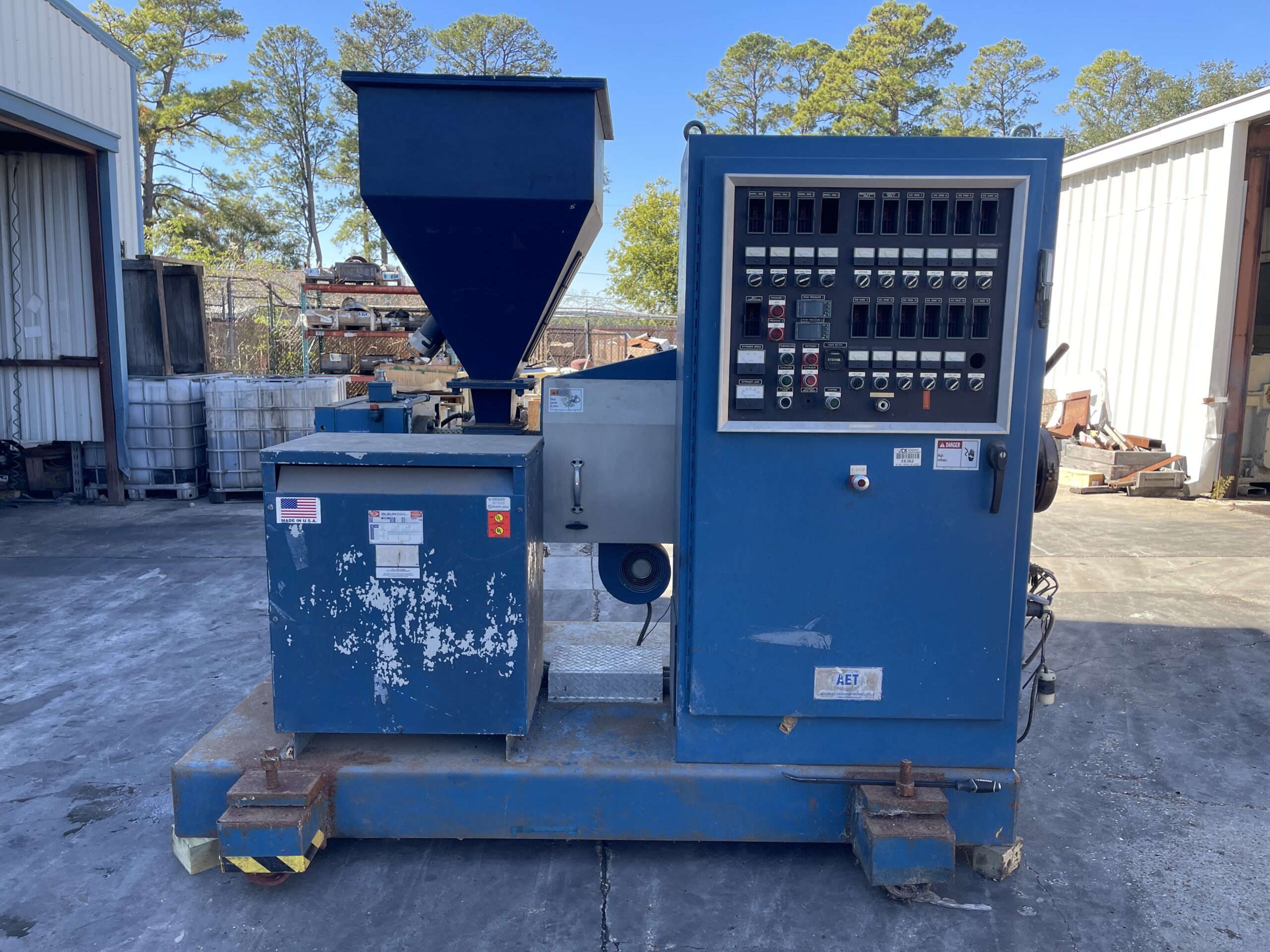

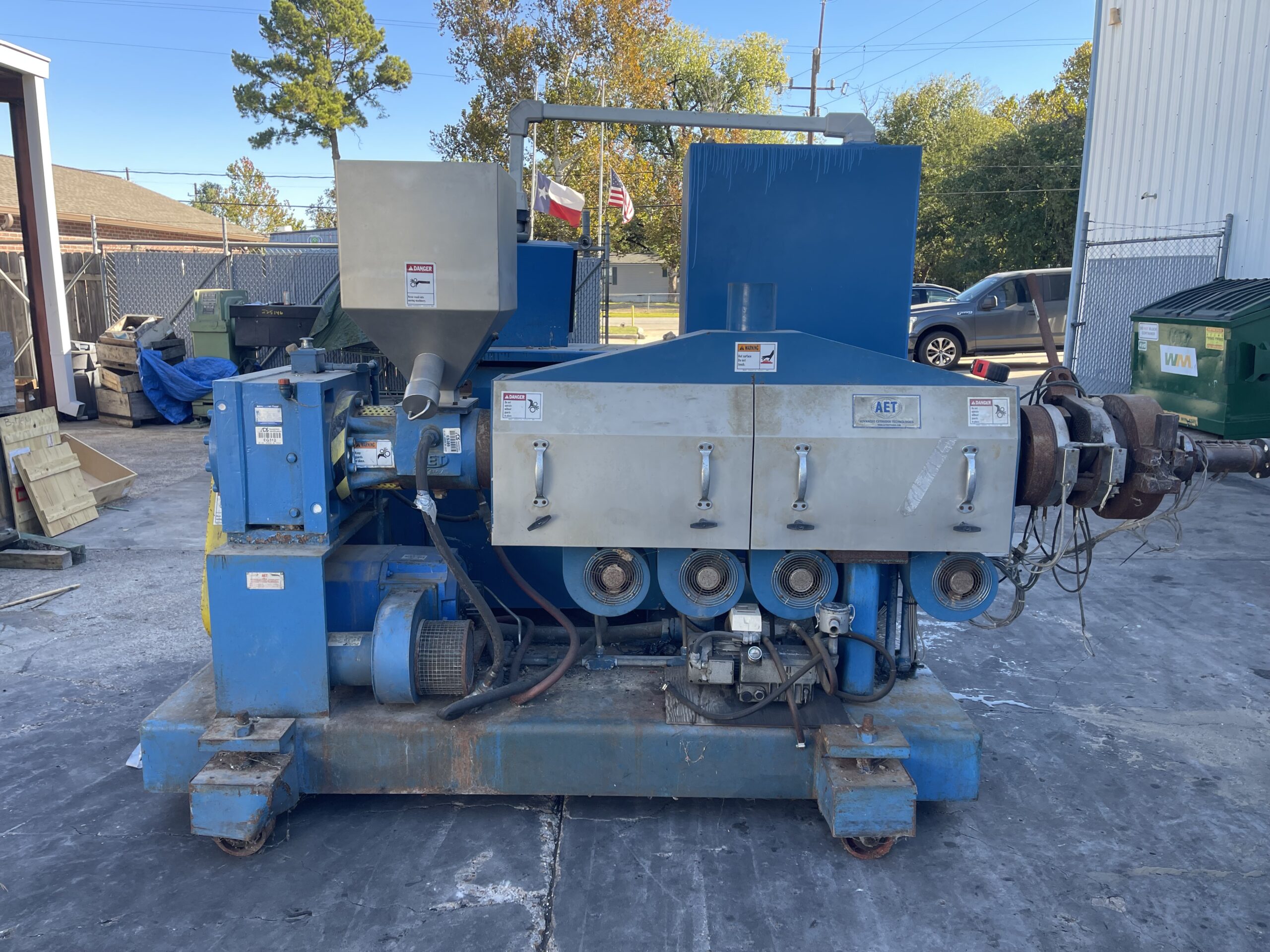

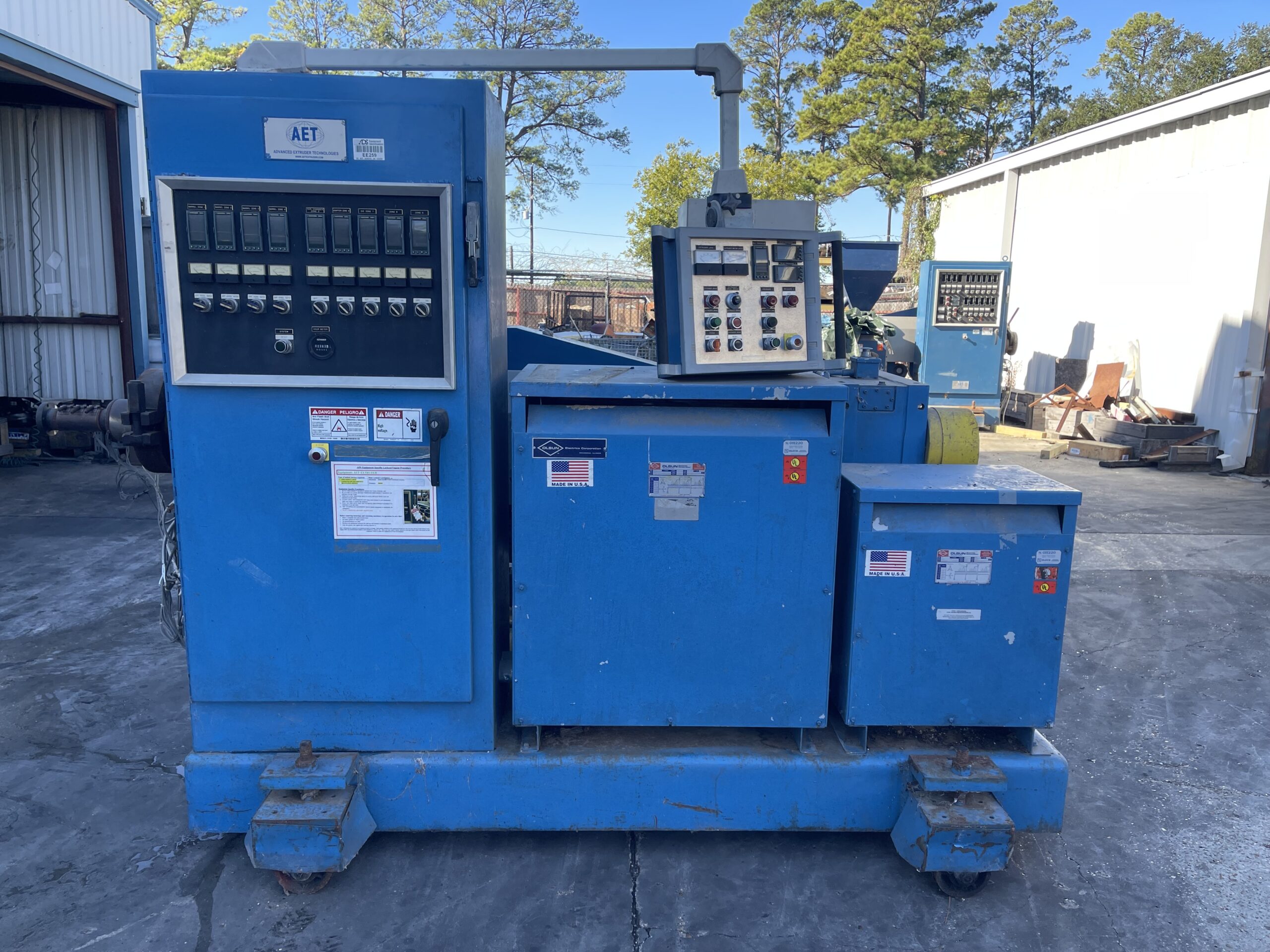

J25148 3.5" 22/1 AET Extruder

J25148 3.5" 22/1 AET Extruder

Gearbox information:
Manufacturer: Koellmann
Model number: UNEX 4.1
Serial number: 2237951
Ratio: 17.53/1
Rating: 75 HP
Service Factor: 1.6

75 HP AC drive motor.
Belt drive setup.

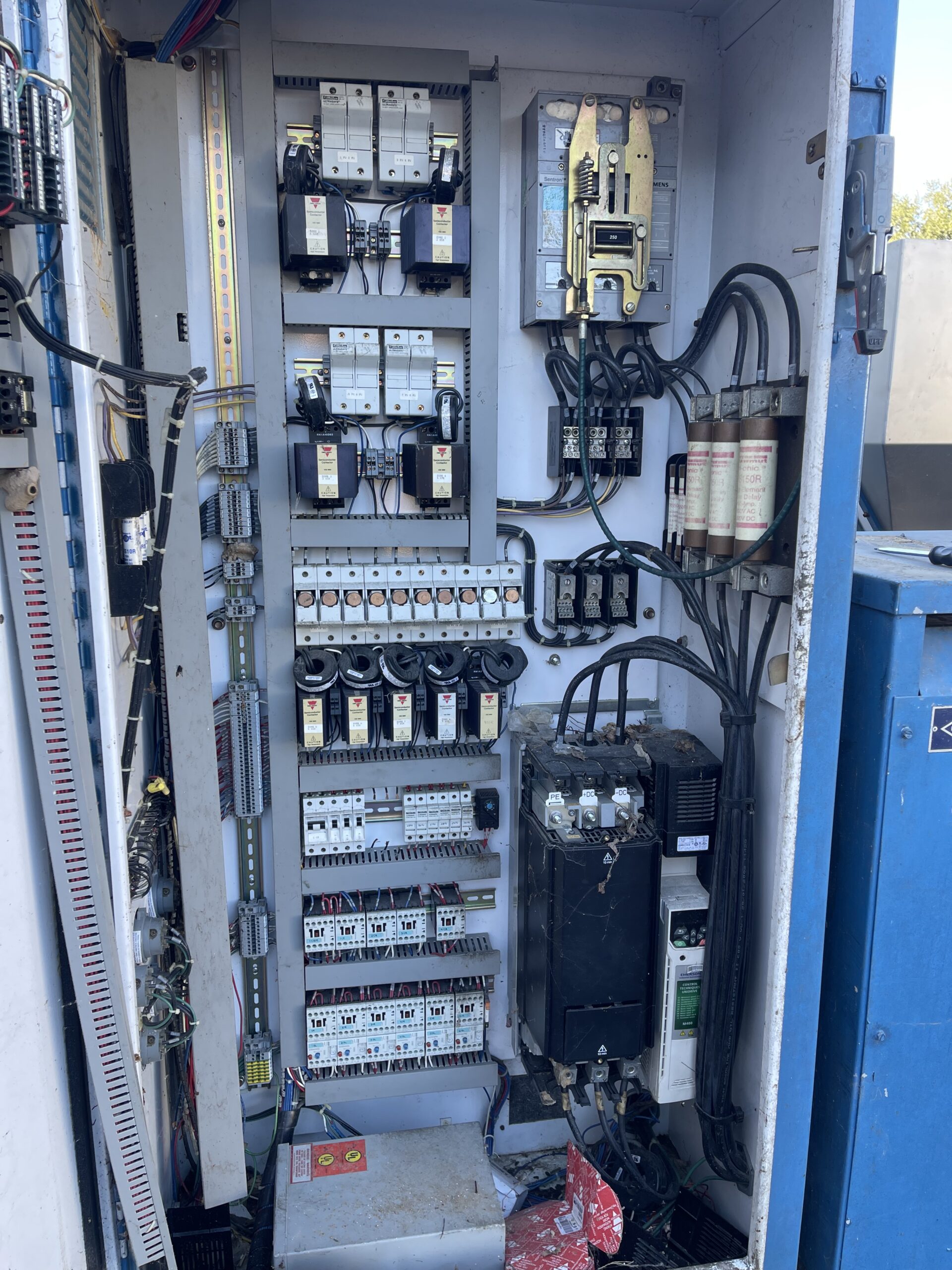

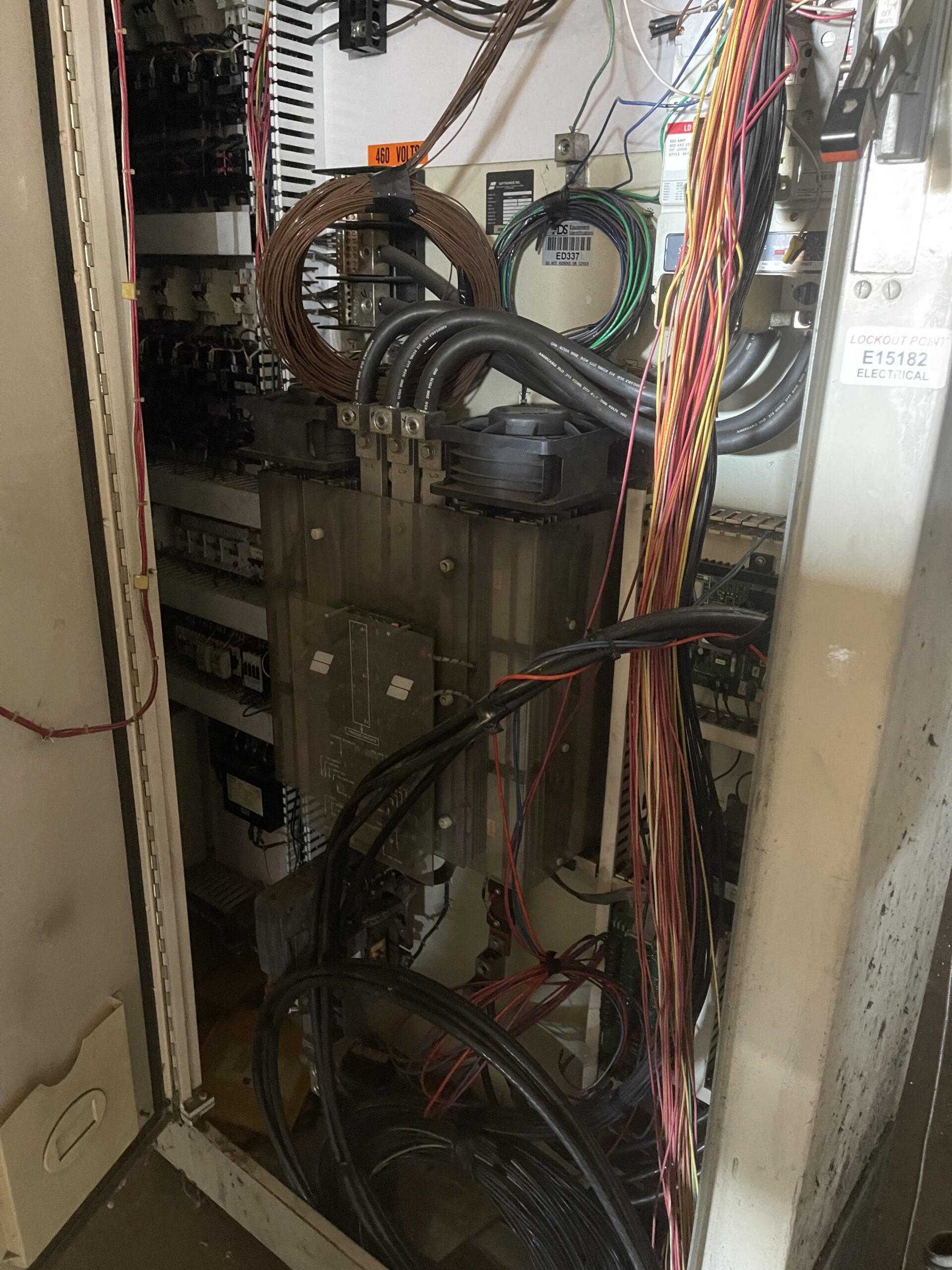

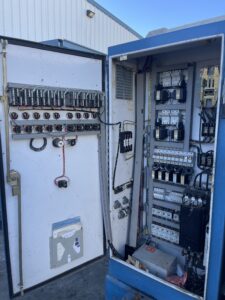

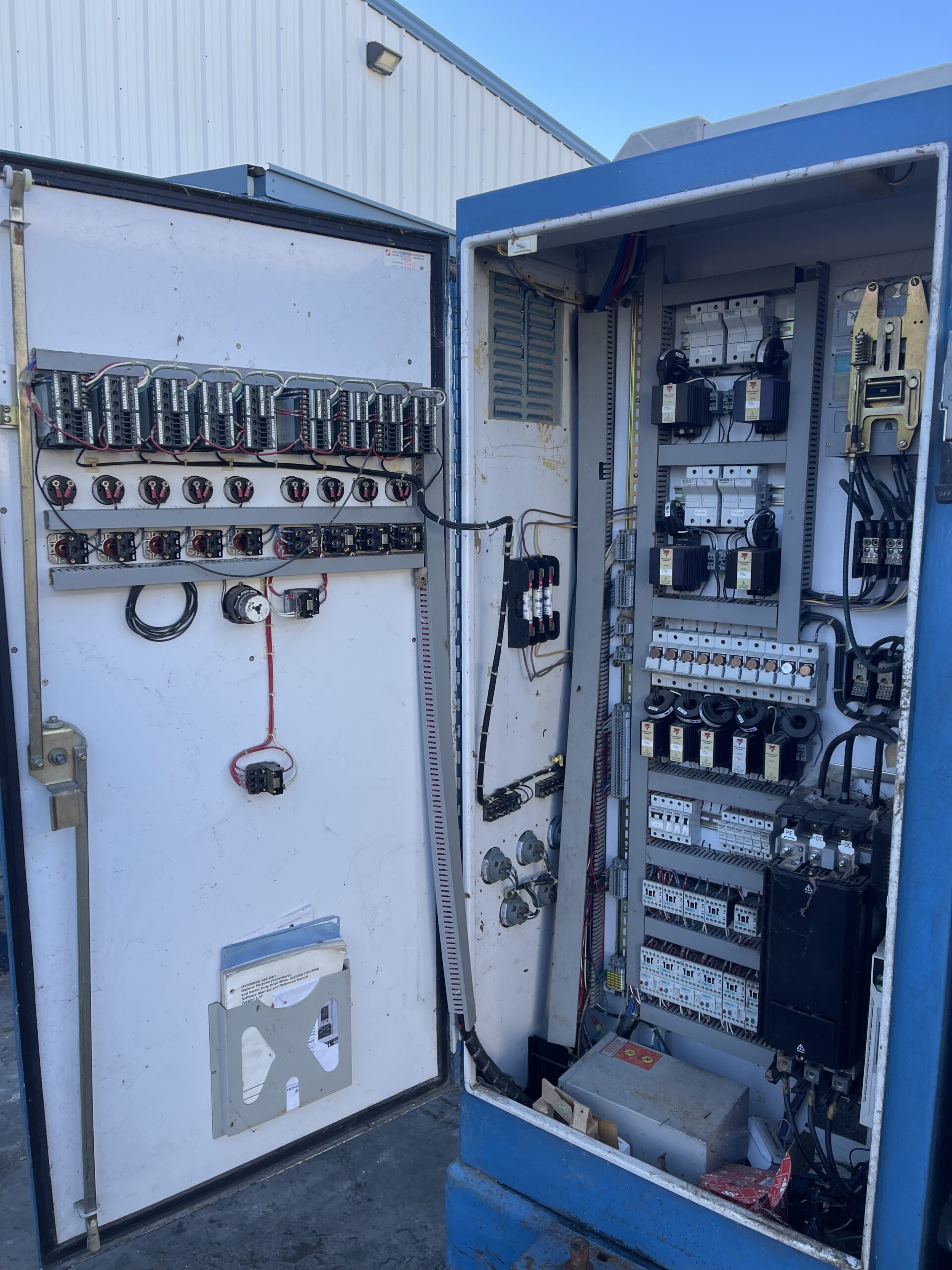

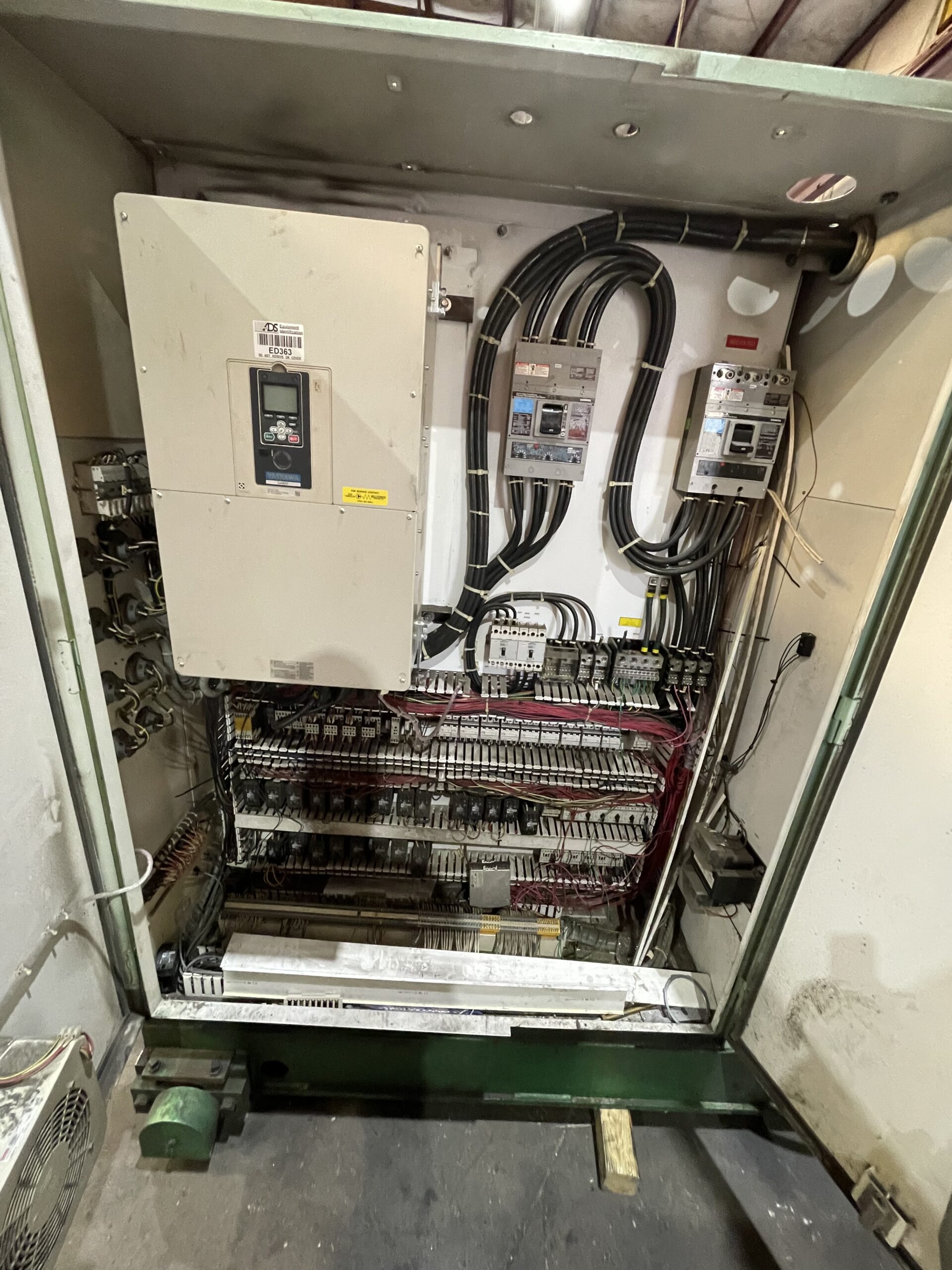

No drive in electrical cabinet.

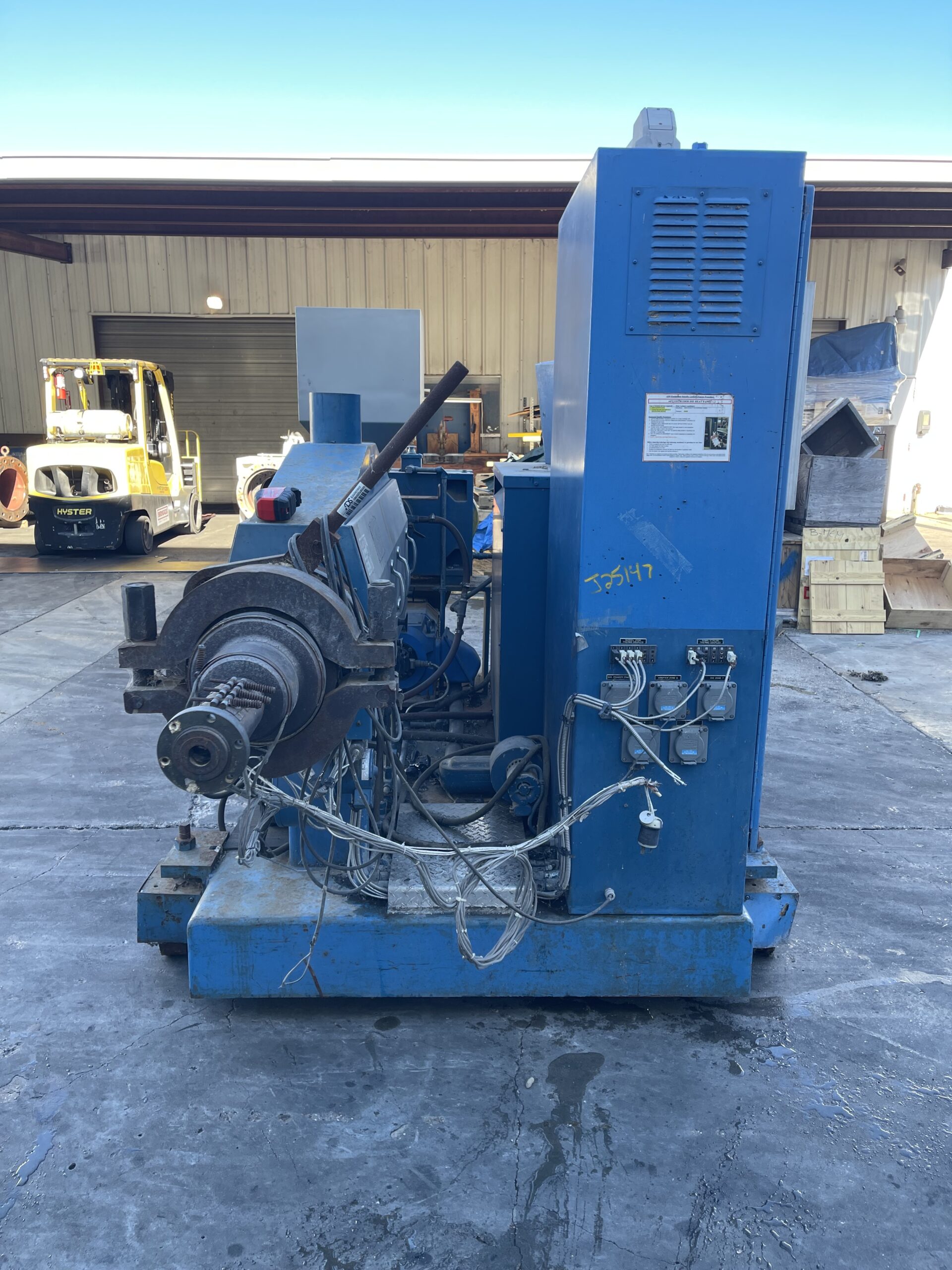

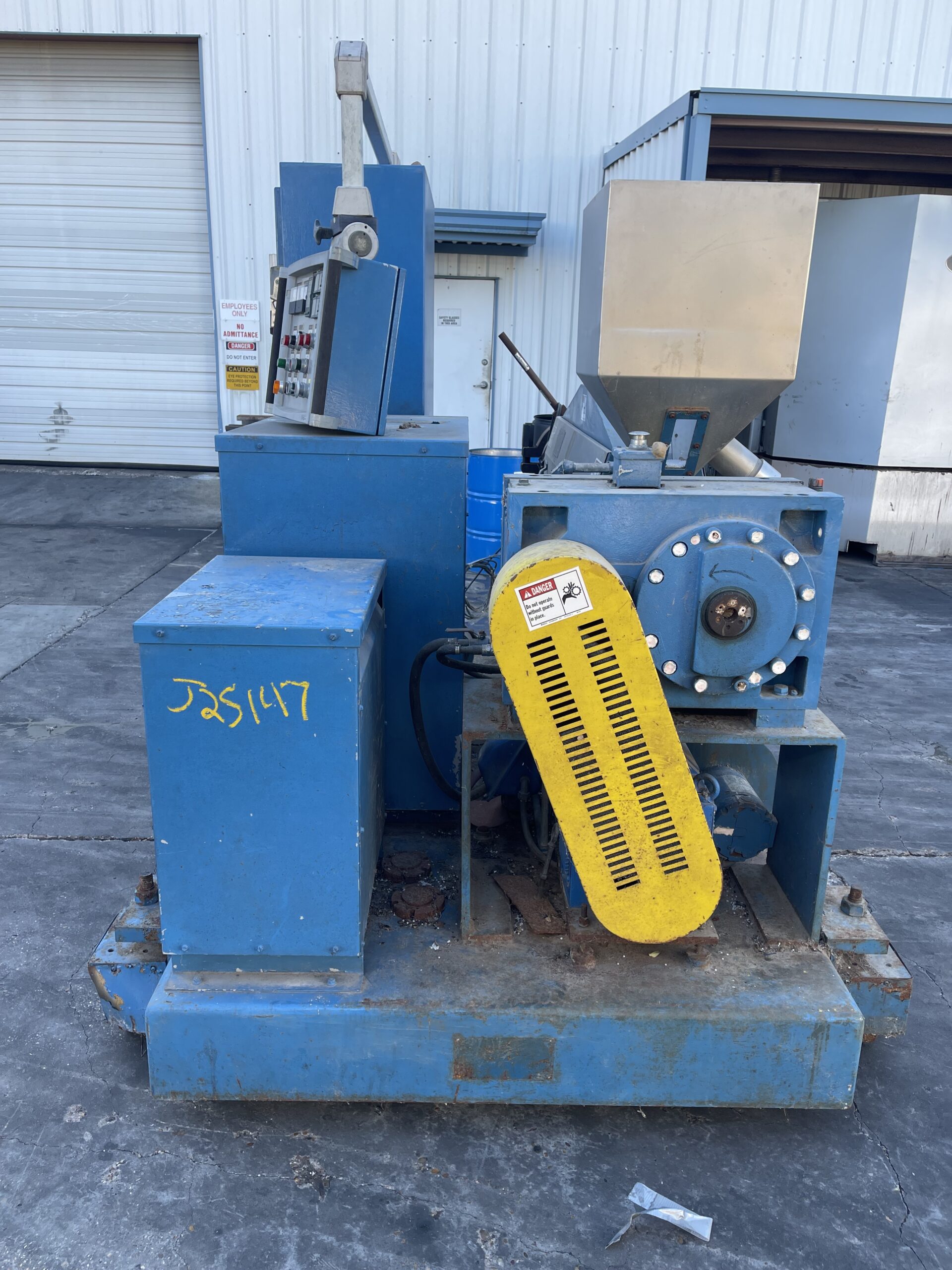

J25147 3.5" 22/1 AET Extruder

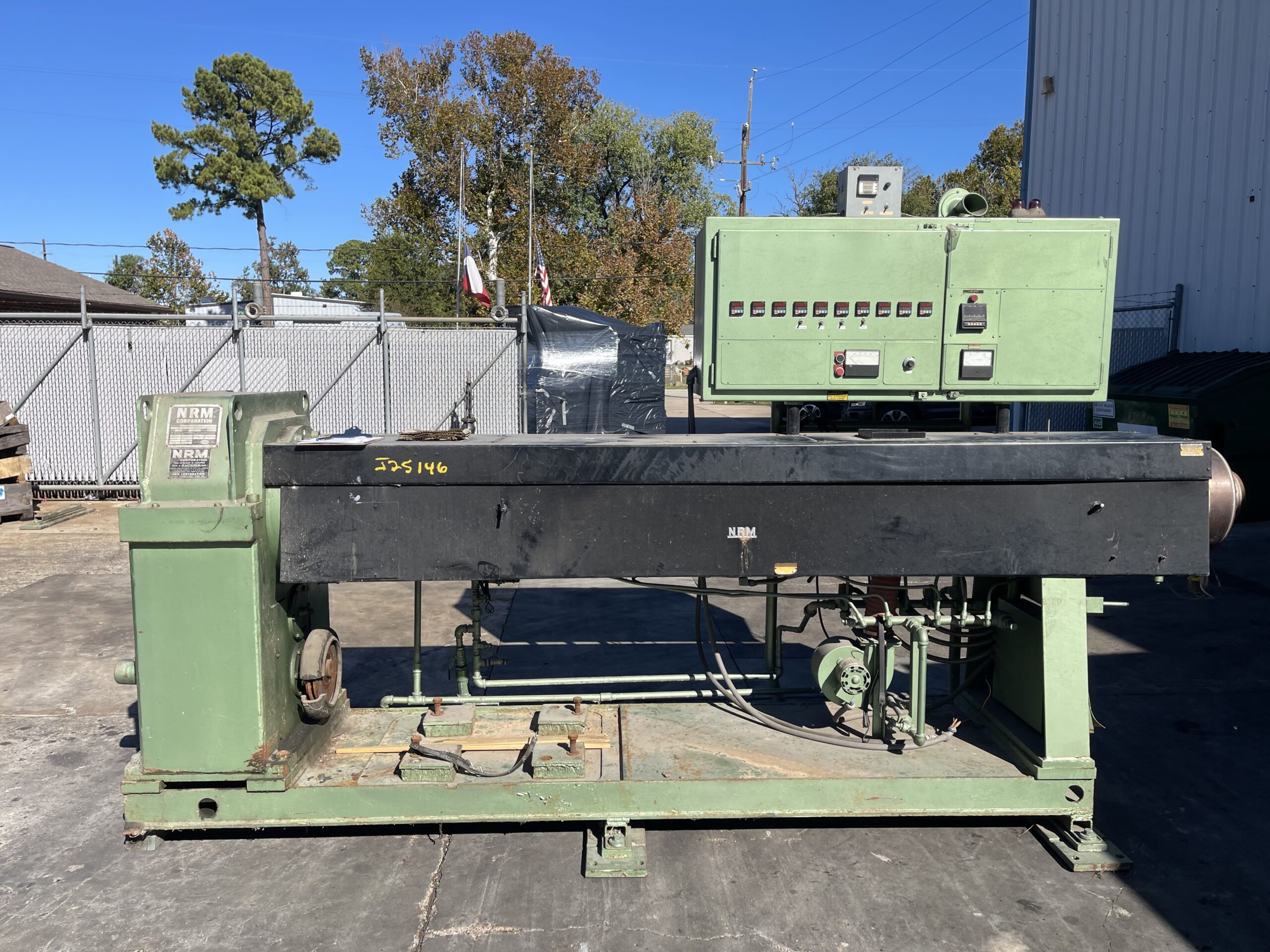

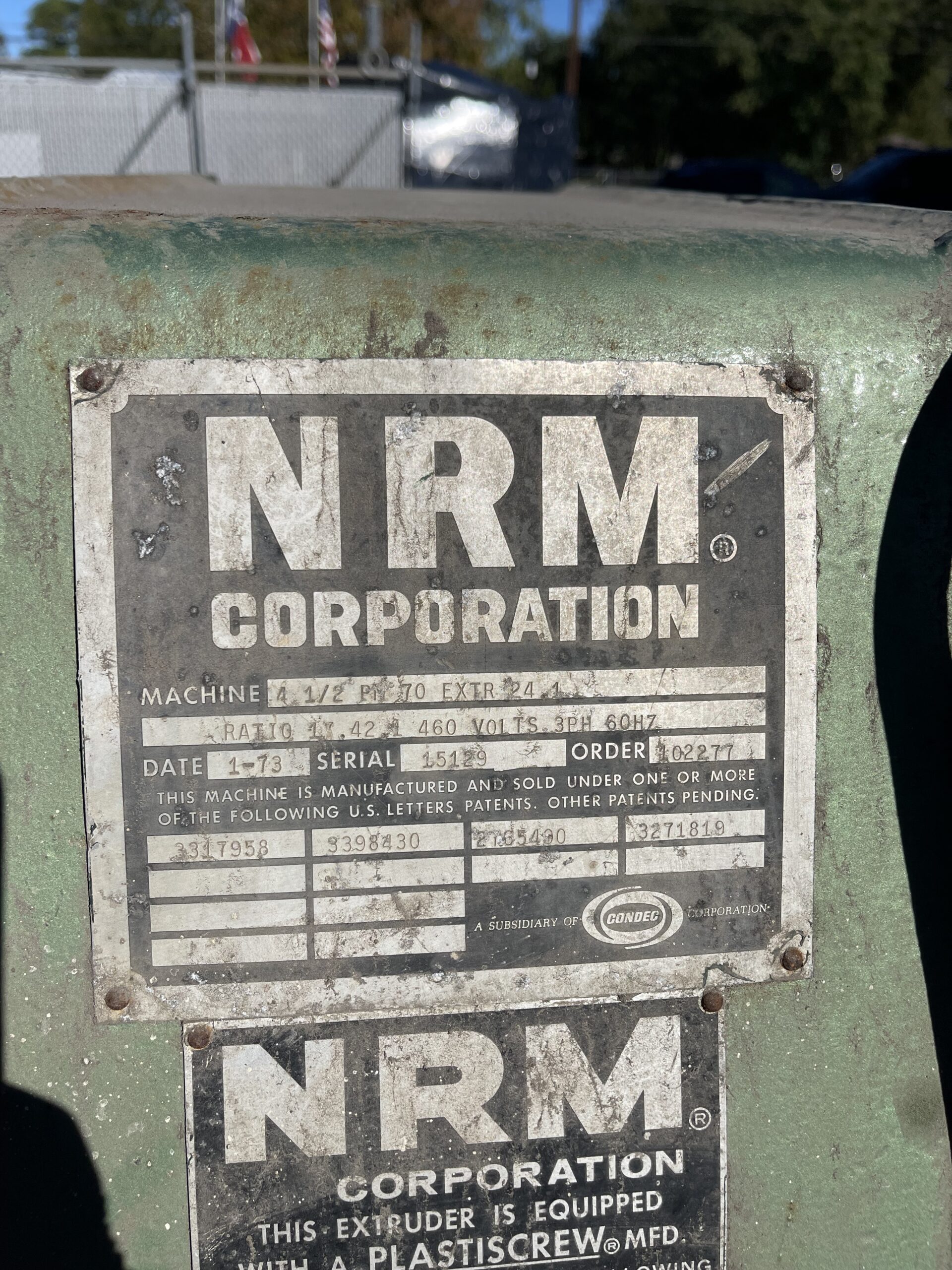

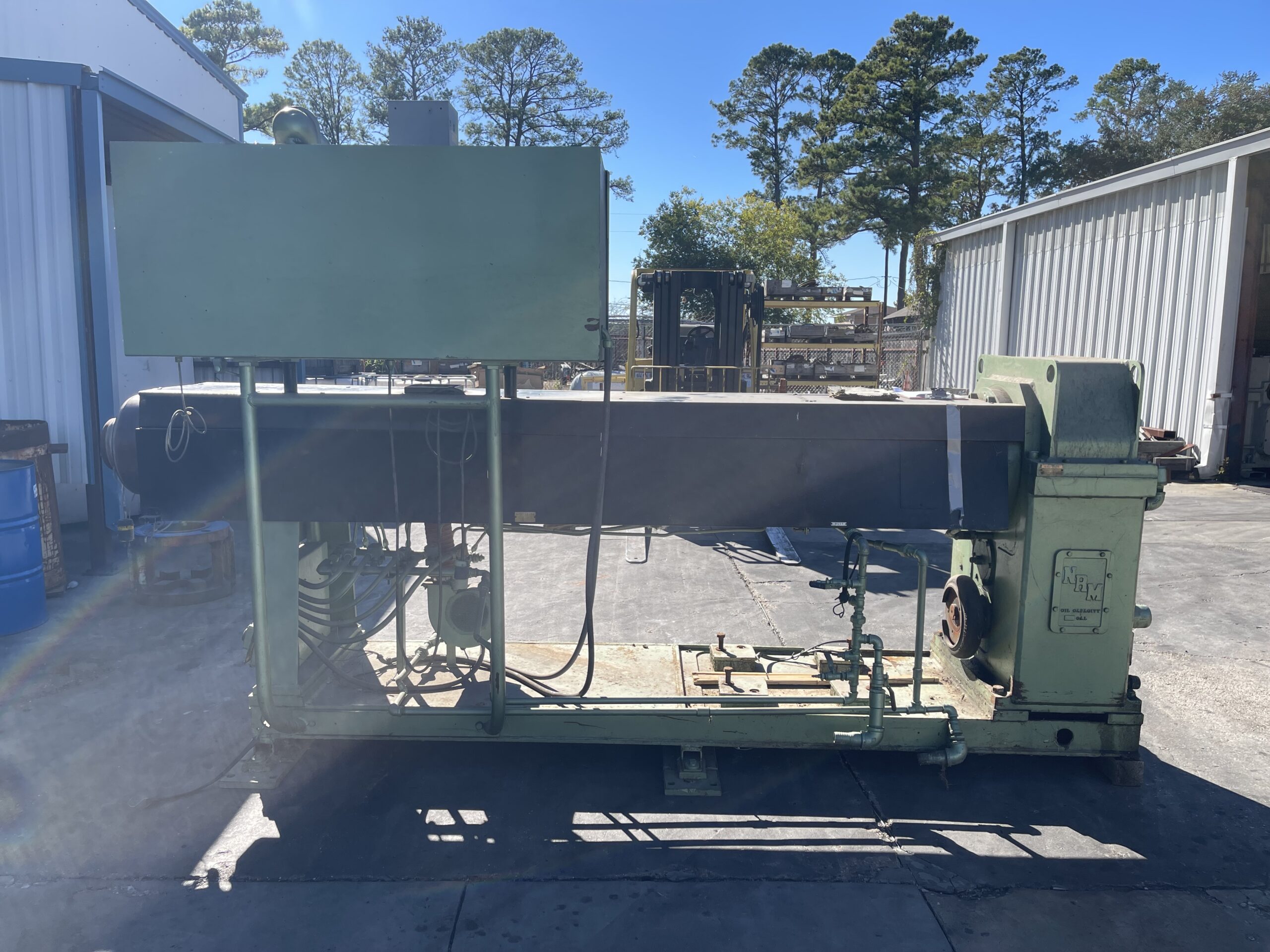

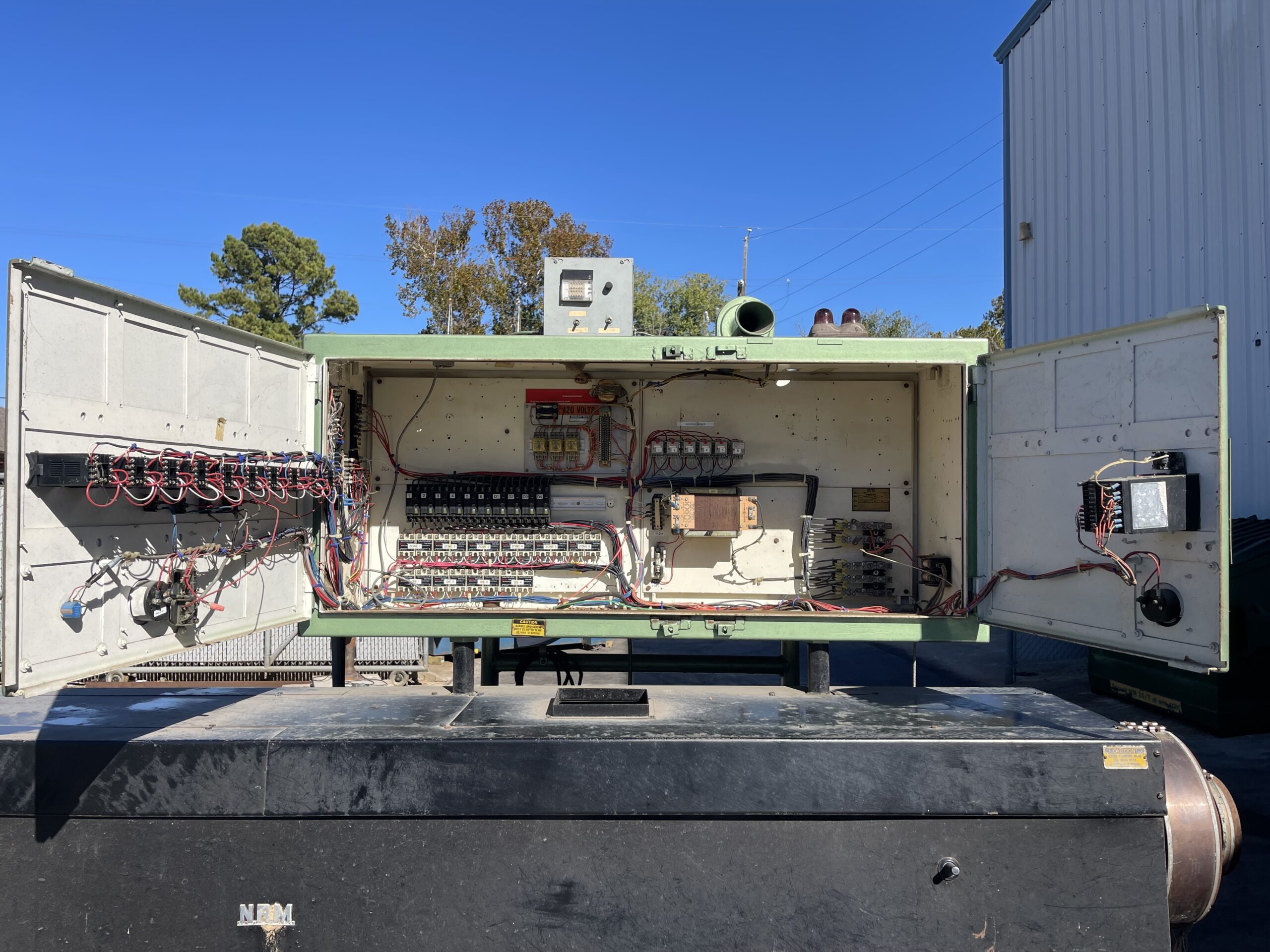

J25146 4.5" 24/1 NRM Extruder 45.125" Centerline

Gearbox information:
Manufacturer: NRM
Model number: PM70
Serial number: 15129
Ratio: 17.42/1
Rating: 150 HP

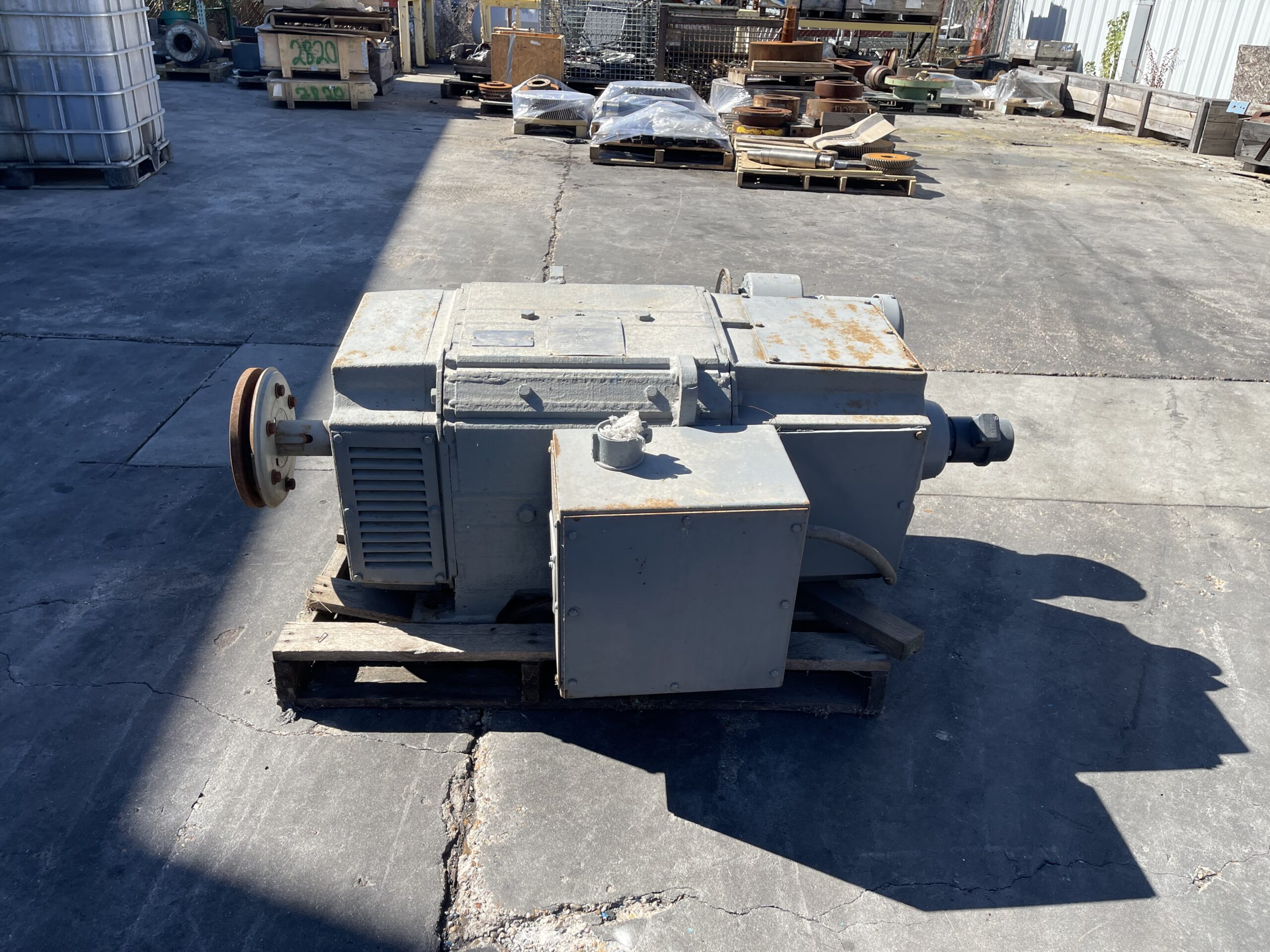

150 HP DC drive motor
Direct drive setup
No drive in electrical cabinet

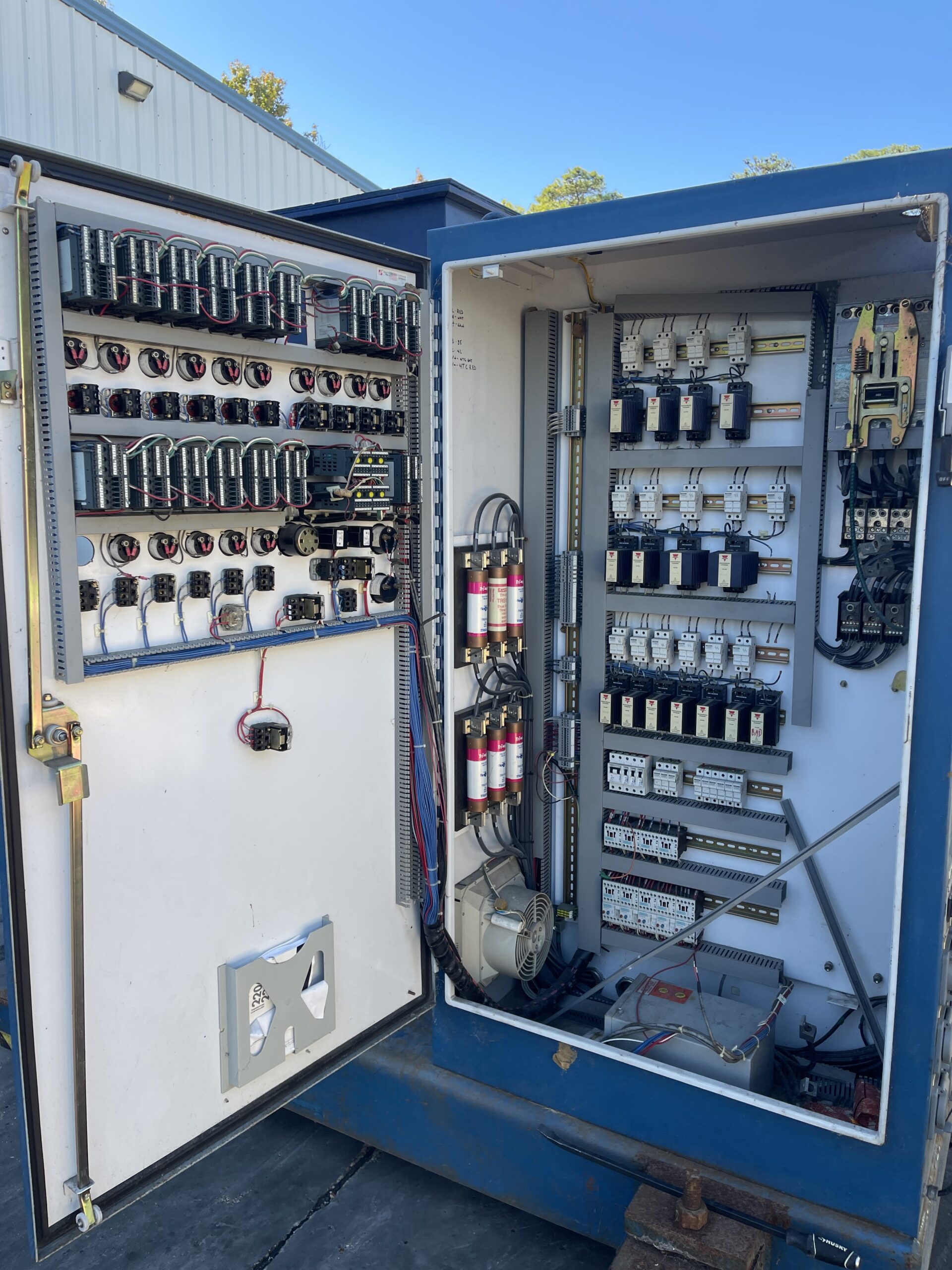

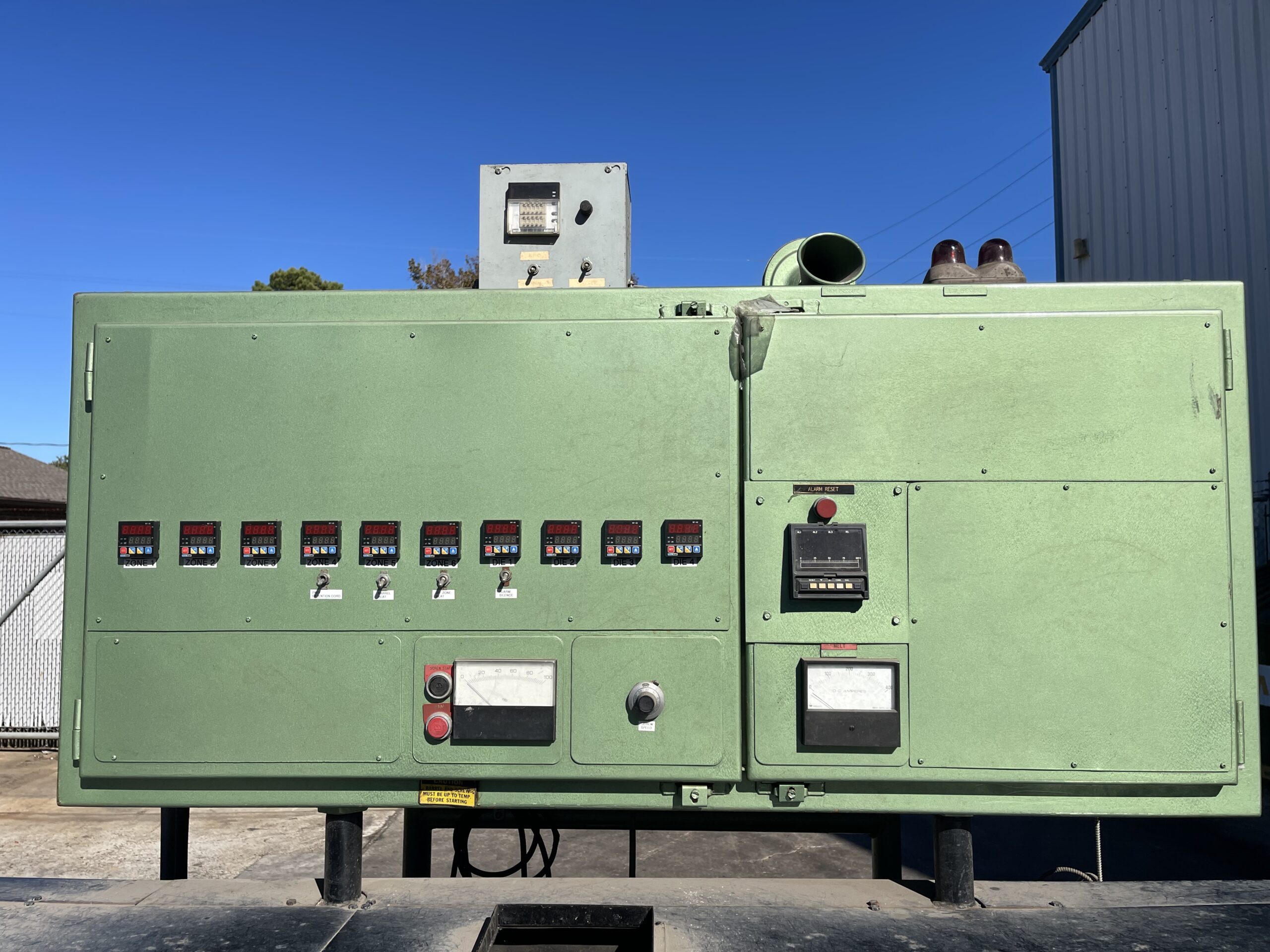

Electrical panel is capable of 10 heater zones, 6 would be utilized for the barrel heat zones
Open loop water-cooled heaters

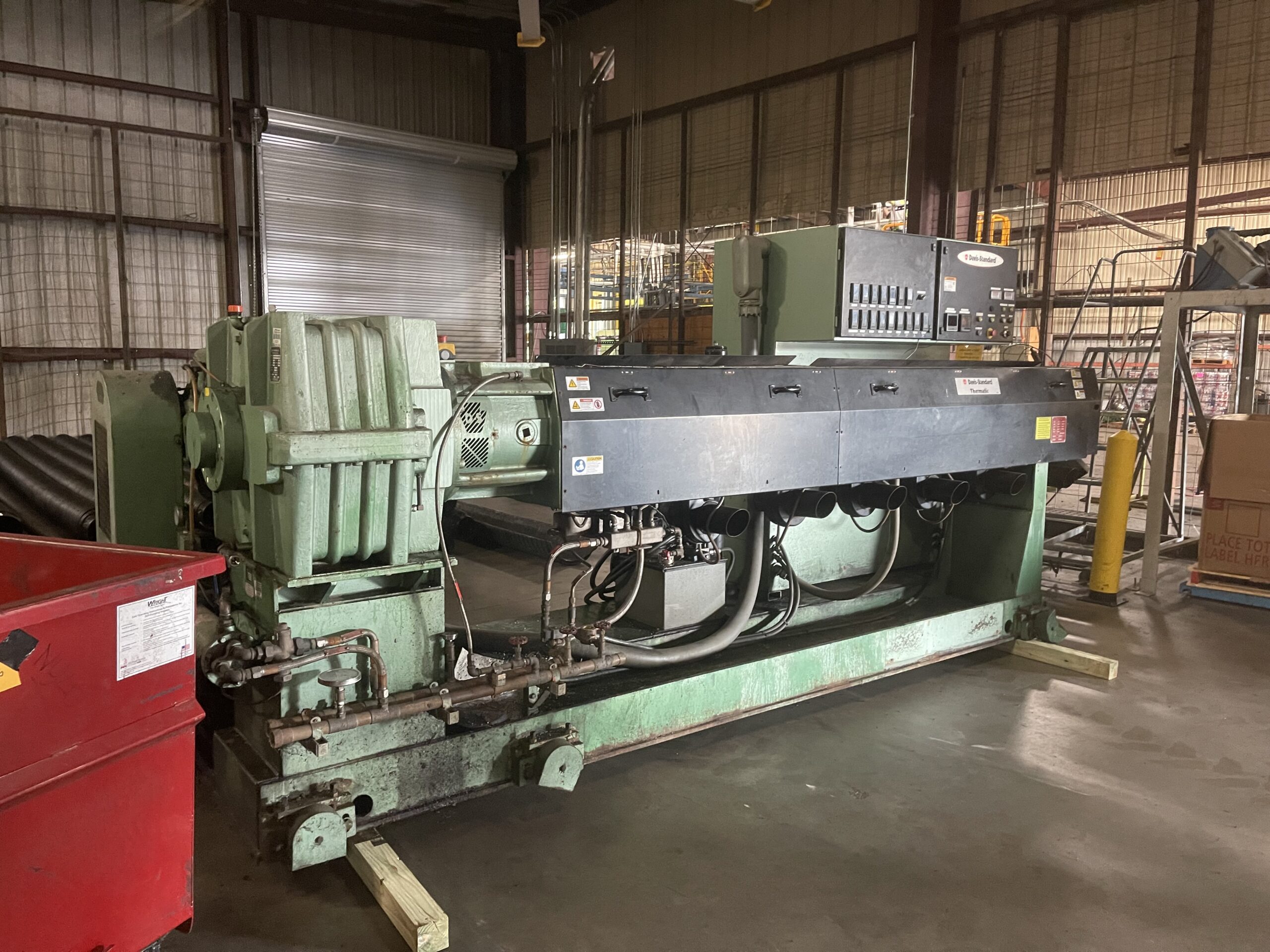

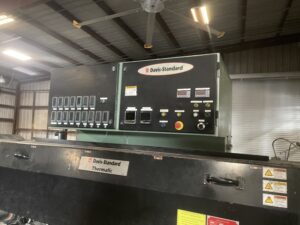

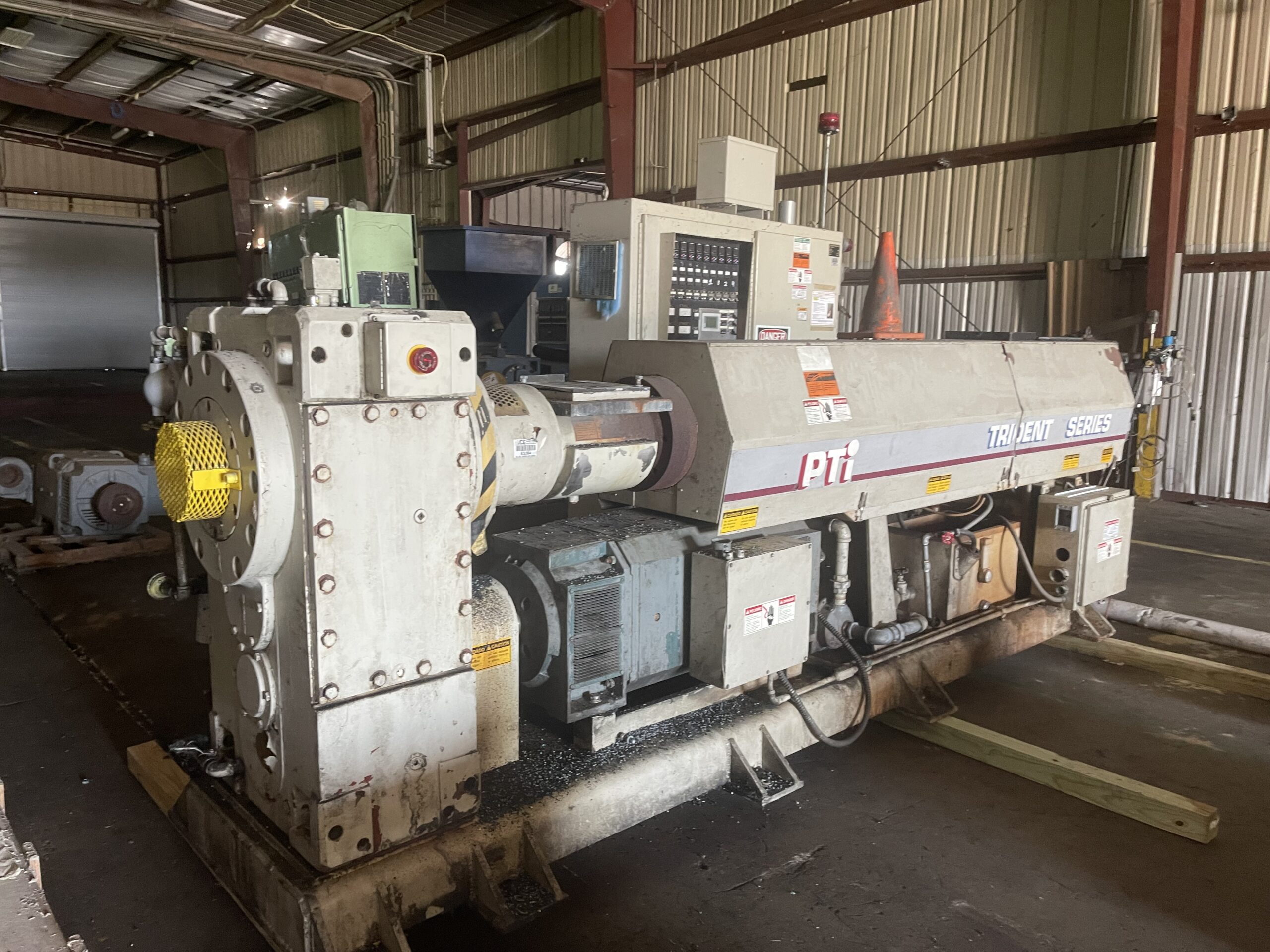

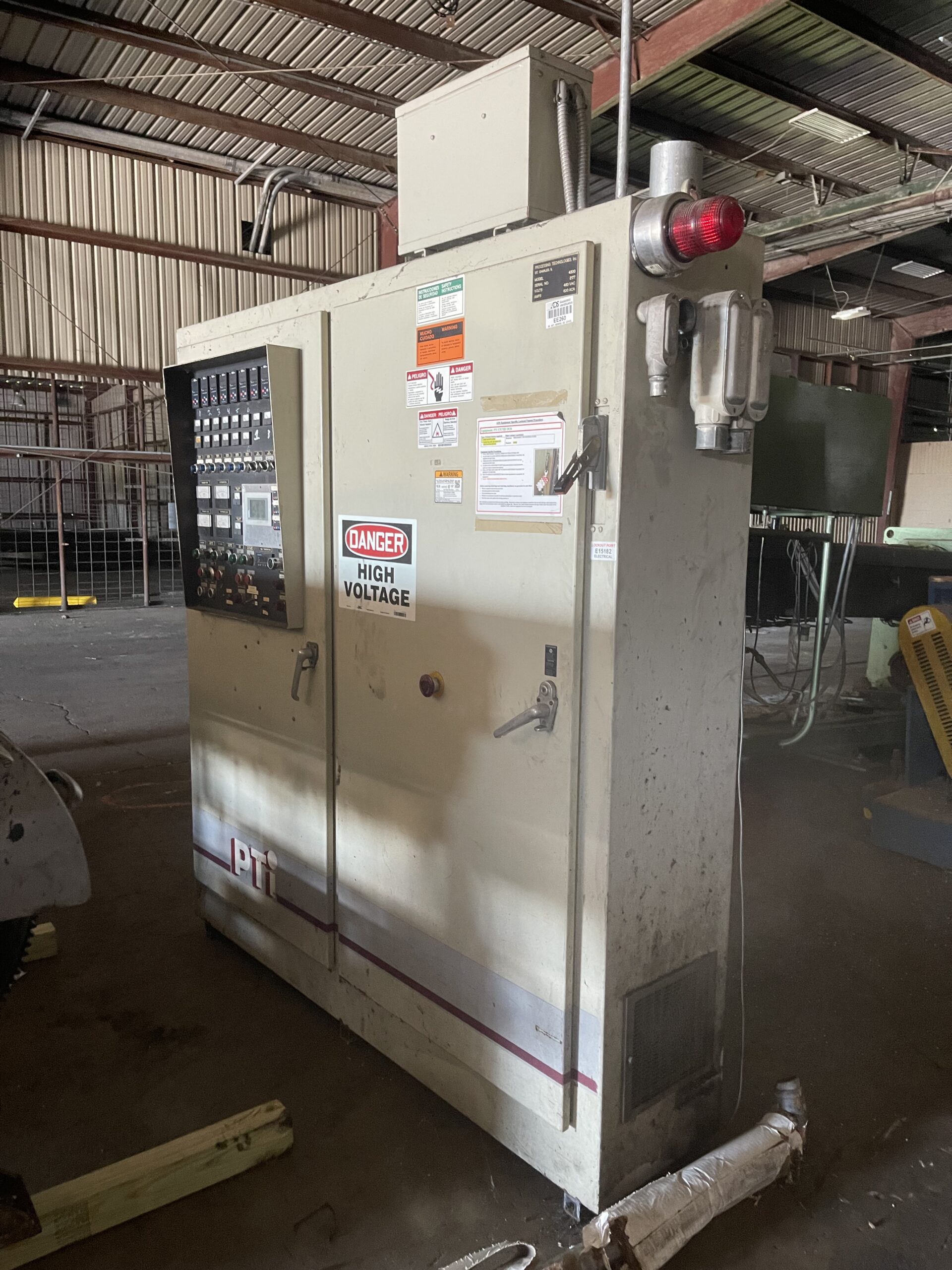

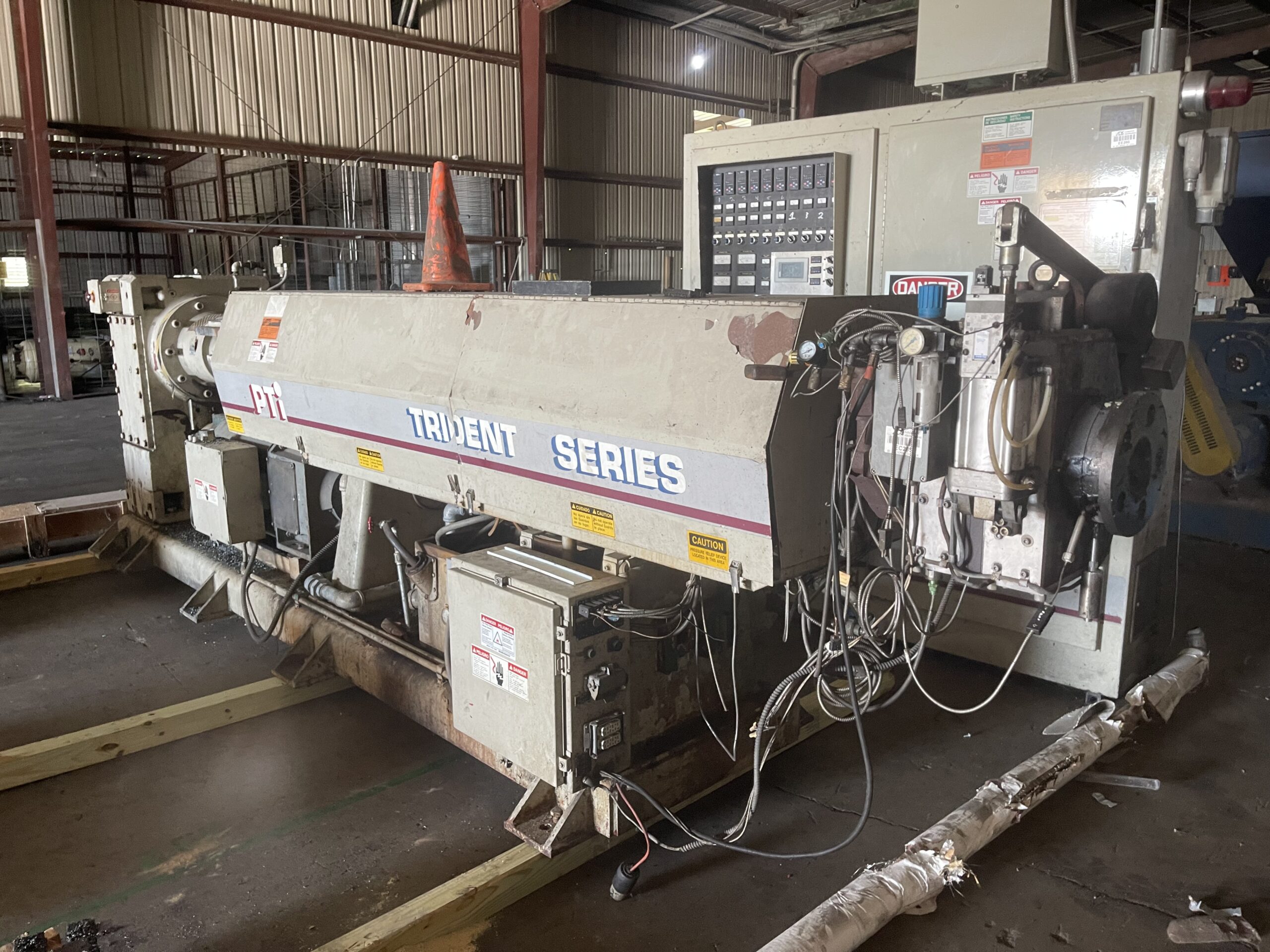

J25145 - 4.5" 32/1 PTI Extruder 43.5" Centerline

Gearbox Information:

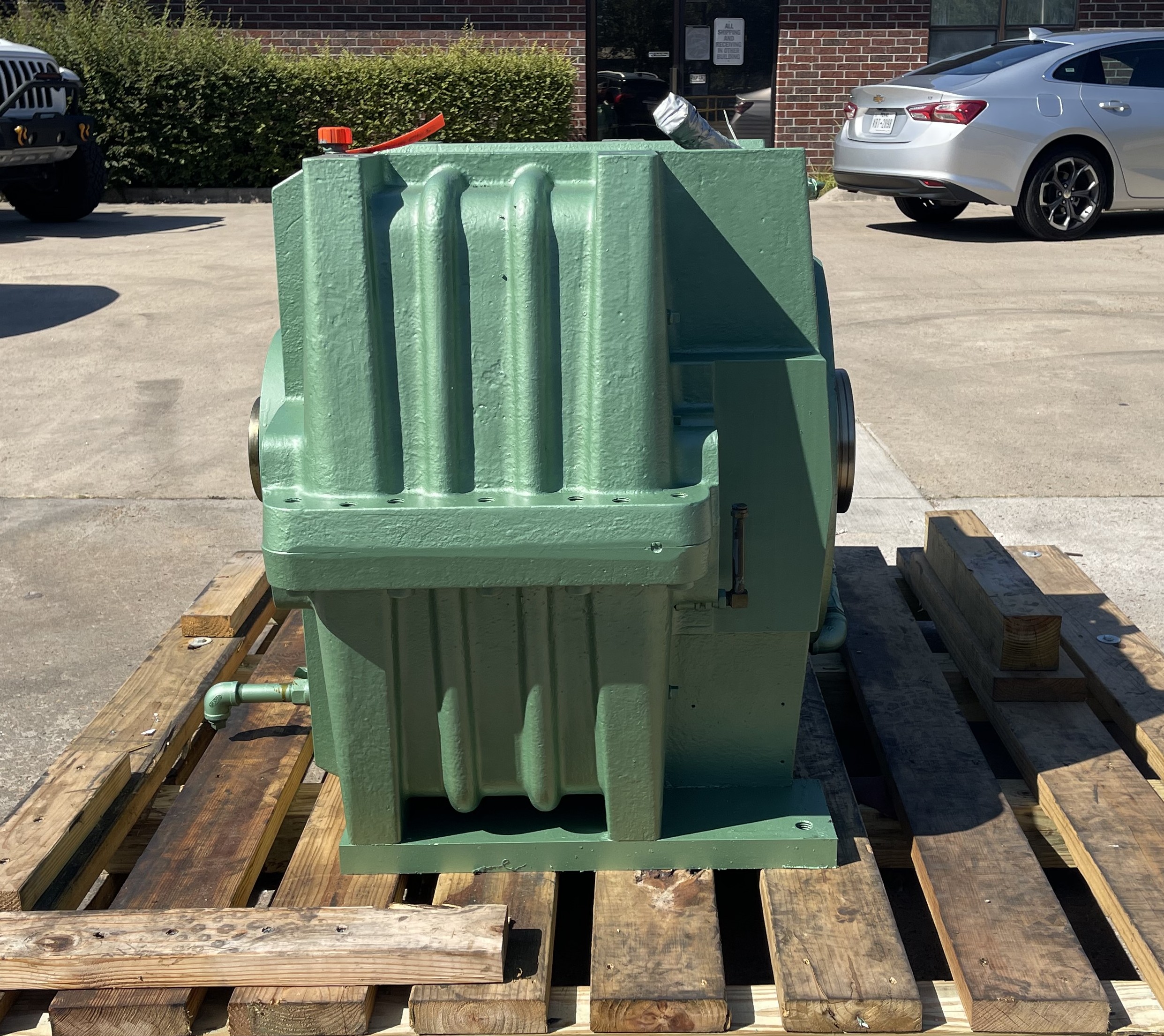

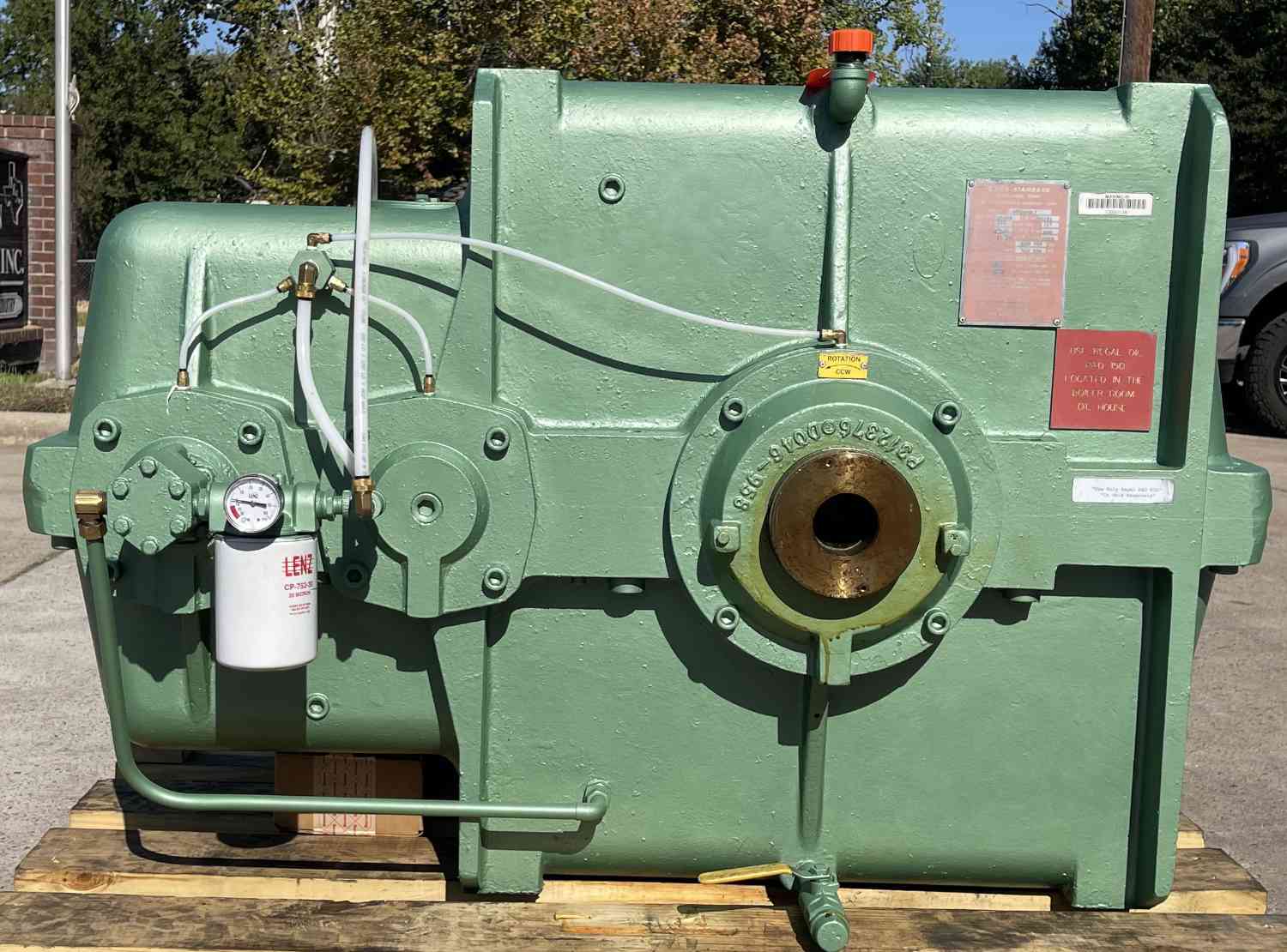

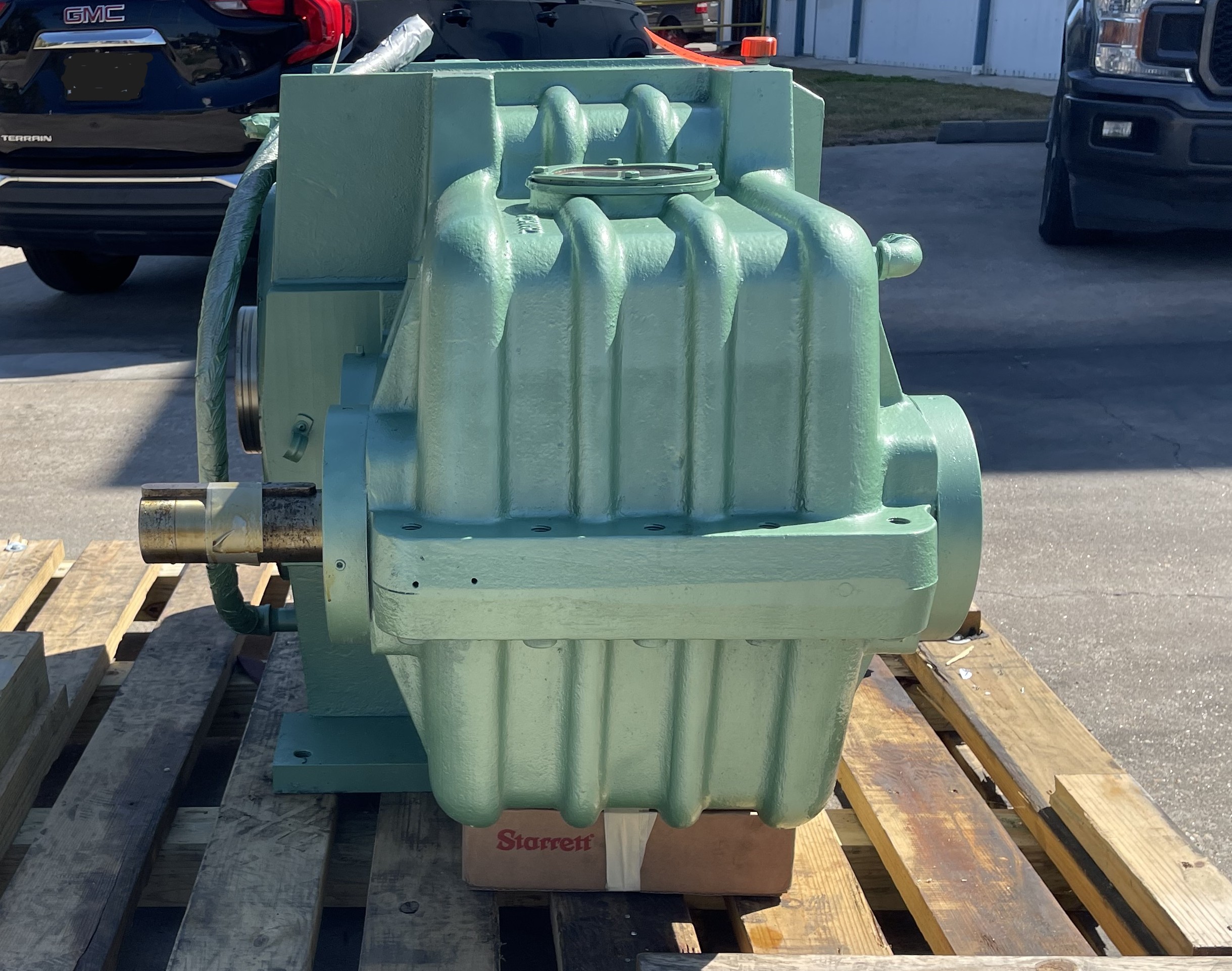

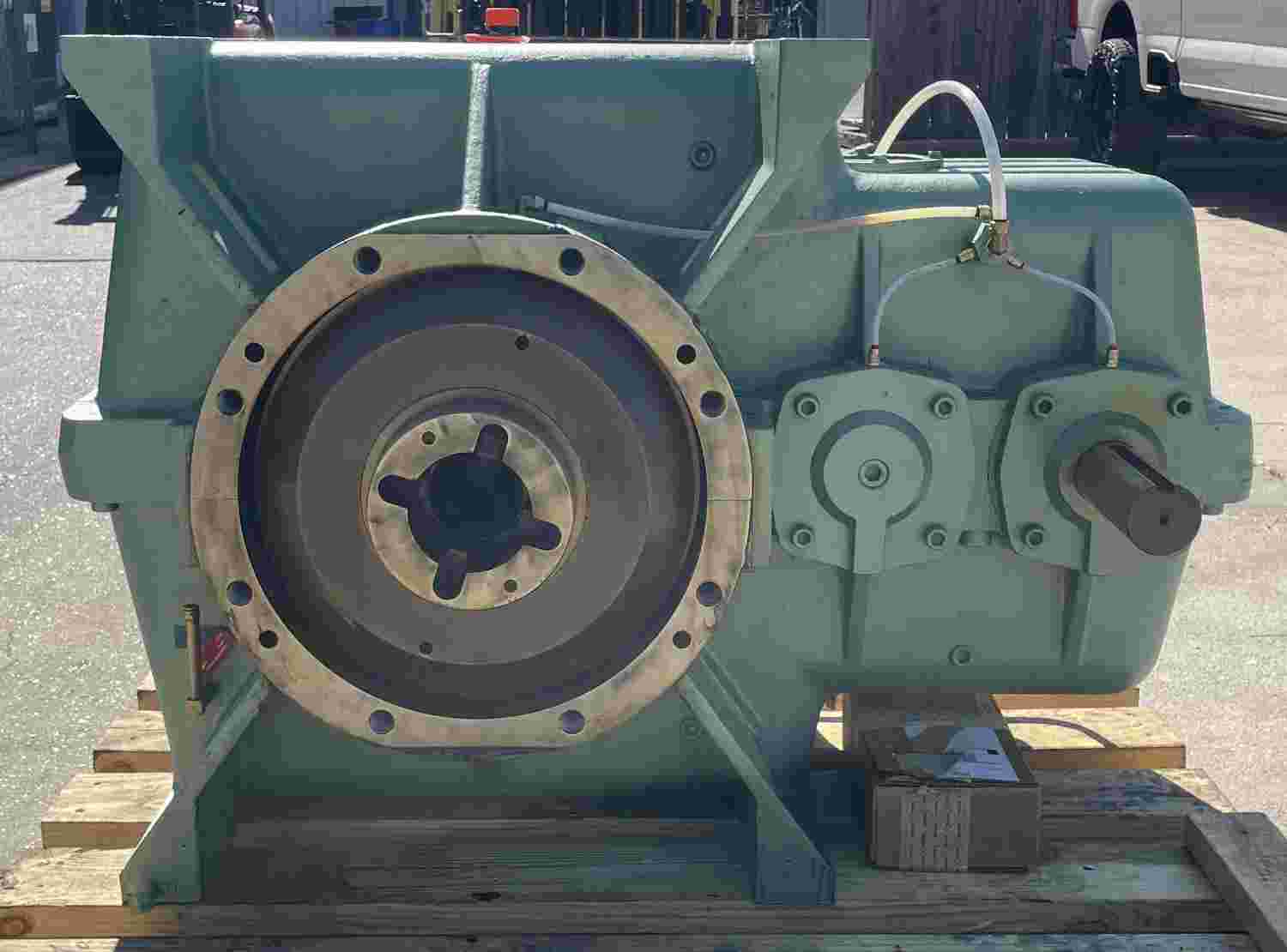

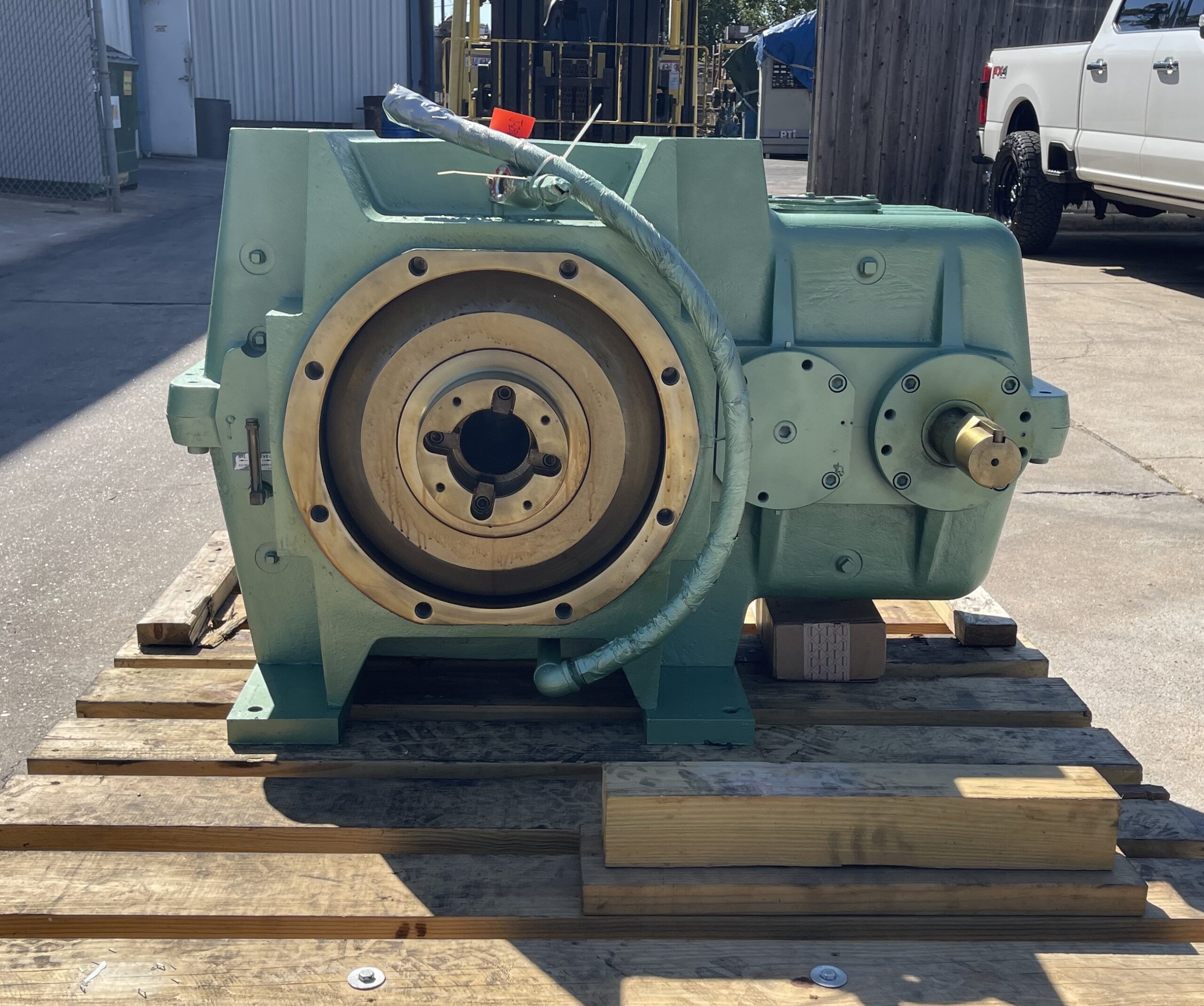

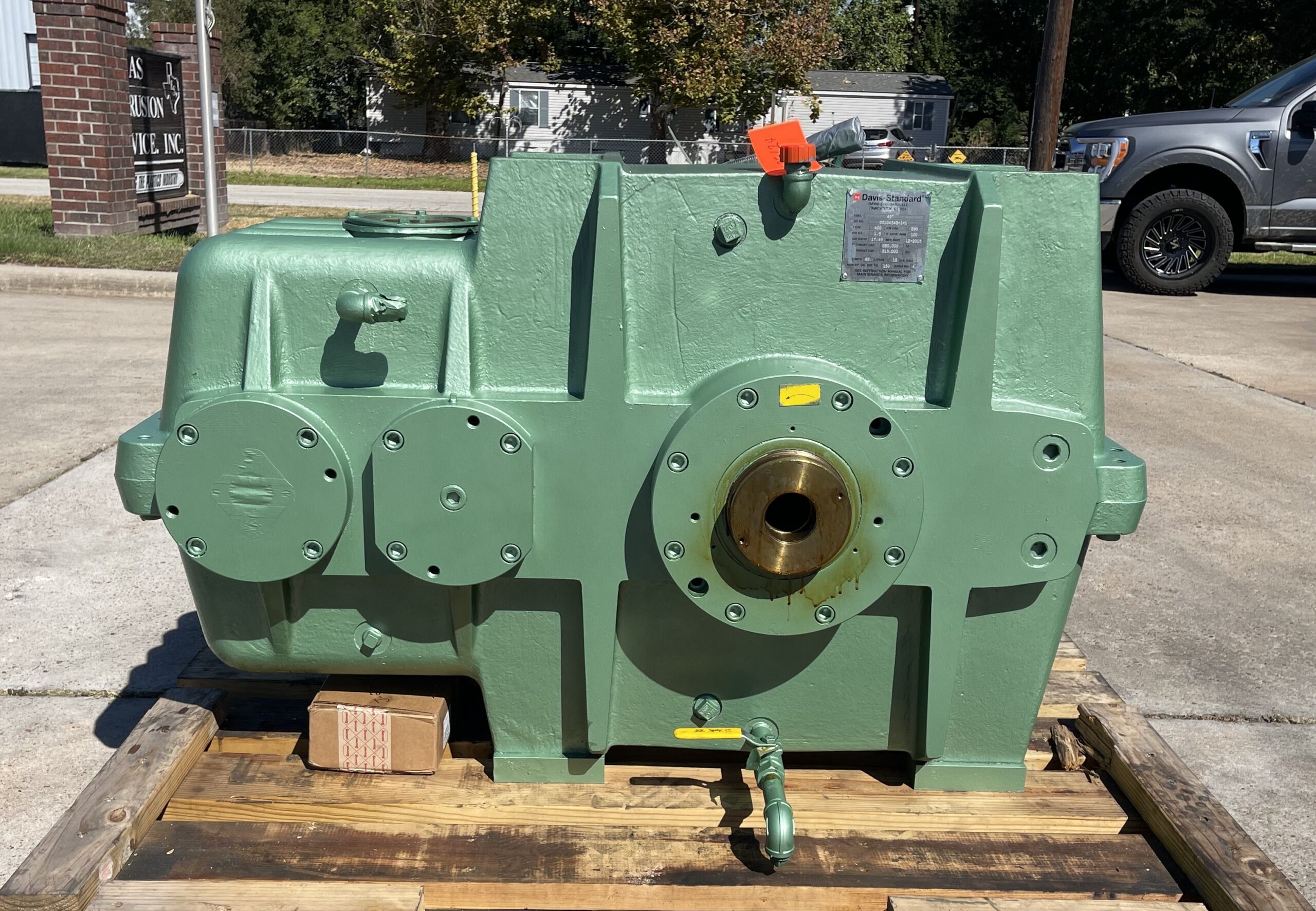

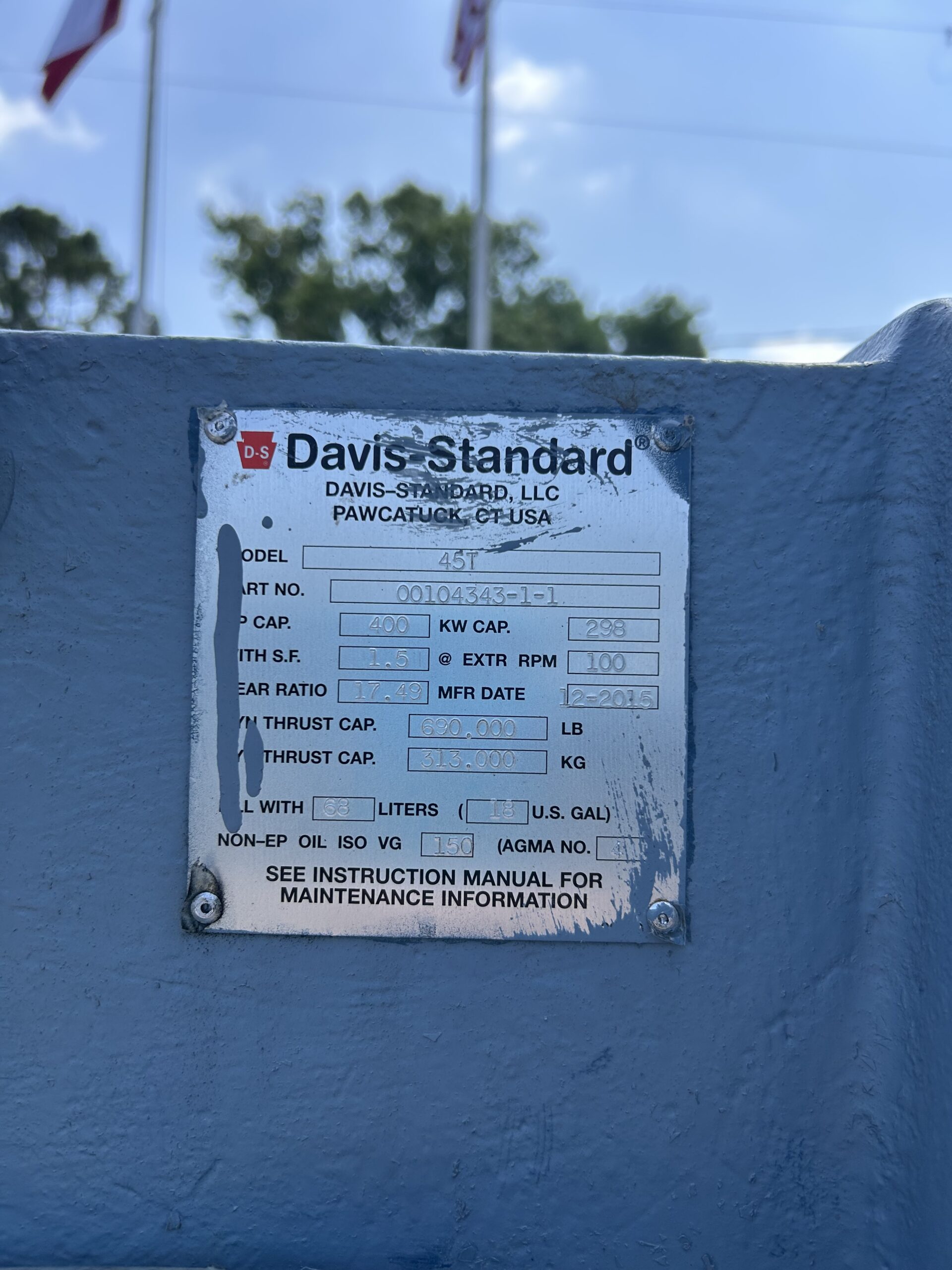

J25124A 4.5" Davis Standard Gearbox

Model: 45T

SN: 00104343-1-1

Ratio: 17.49/1

HP Capacity: 400

Service Factor: 1.5

Manufacture date: 12/2015

*Gearbox has no oil pump.  When the gearbox is purchased, we will install a new pump and filter assembly.

Note:  There are options for repairs, call us for pricing.

8" Gloucester Gear Case

Mfr date 08/02

Gear Case ration 25.1/1

24″ bolt circle

7-7/8″ quill ID

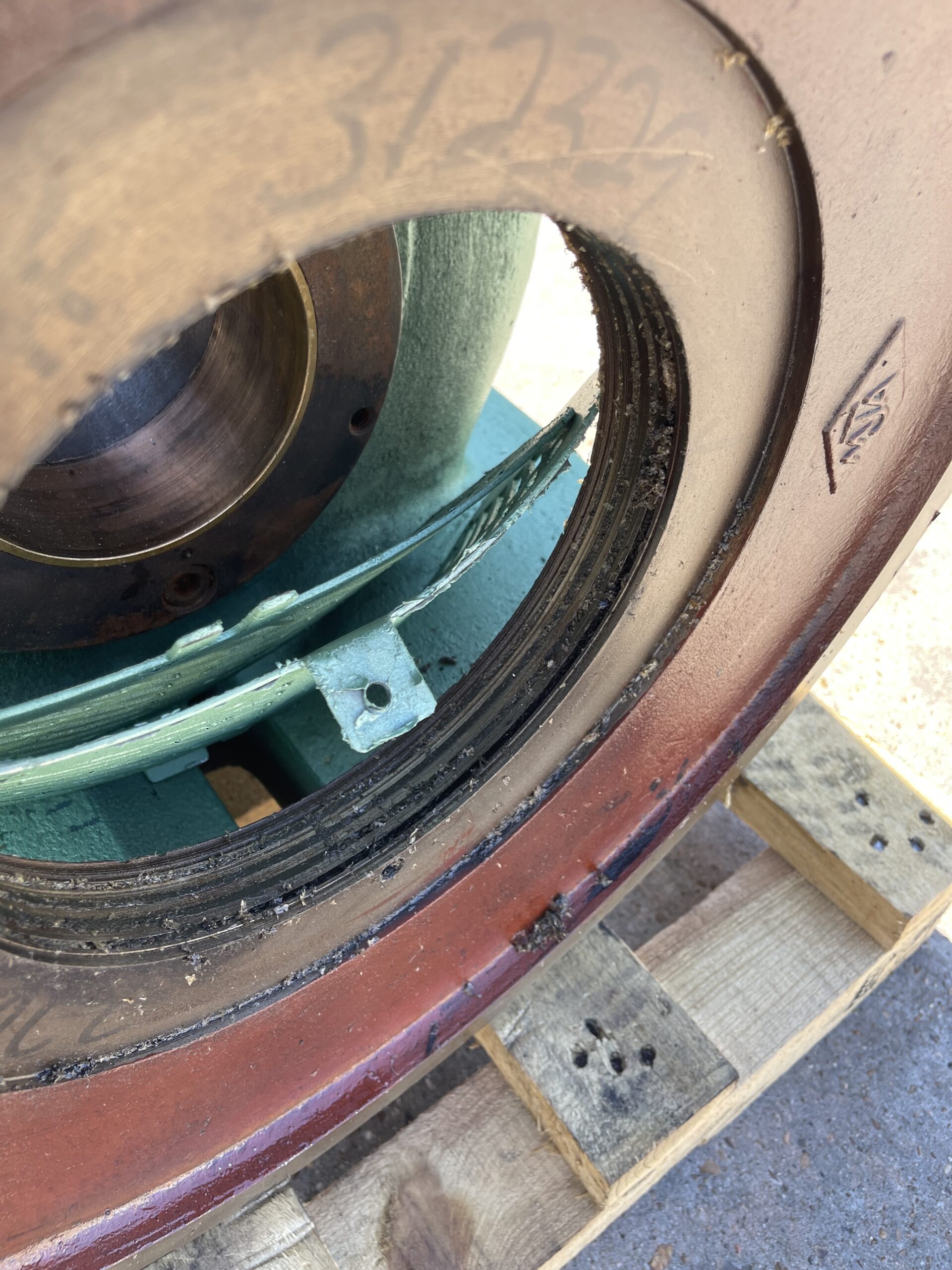

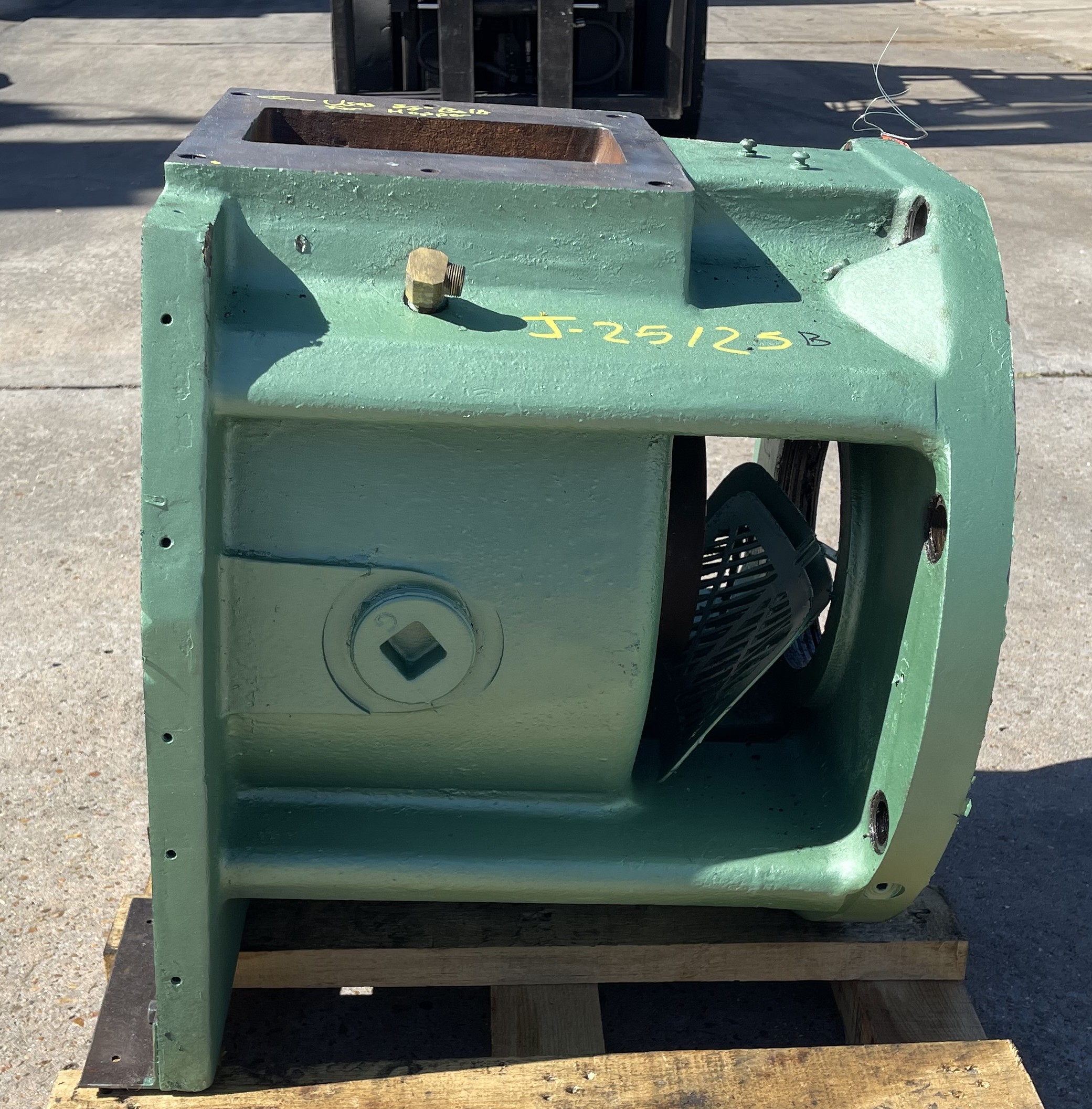

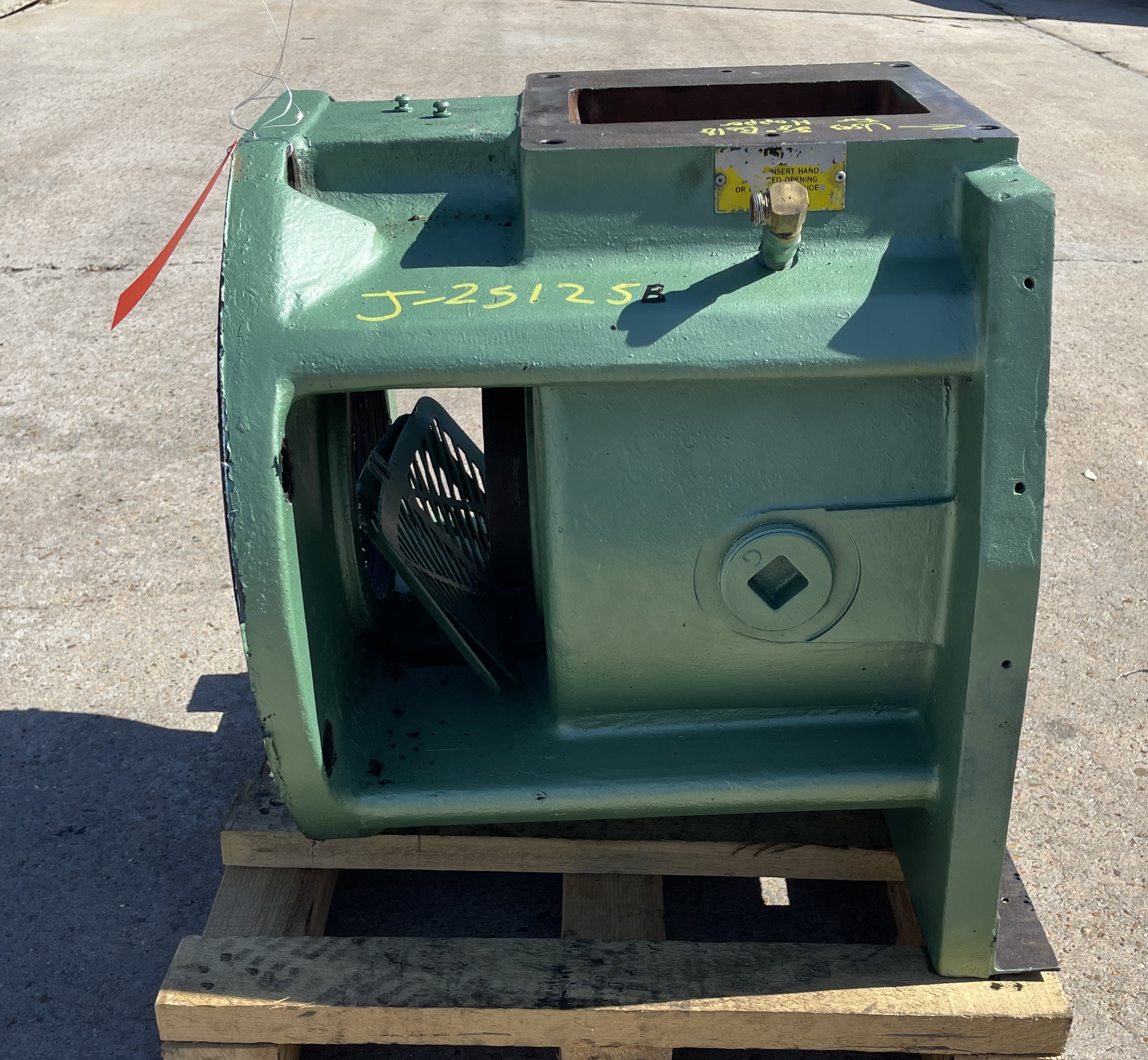

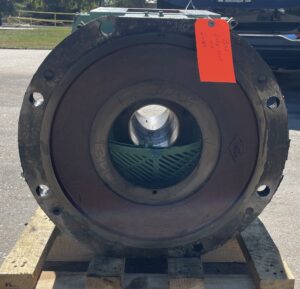

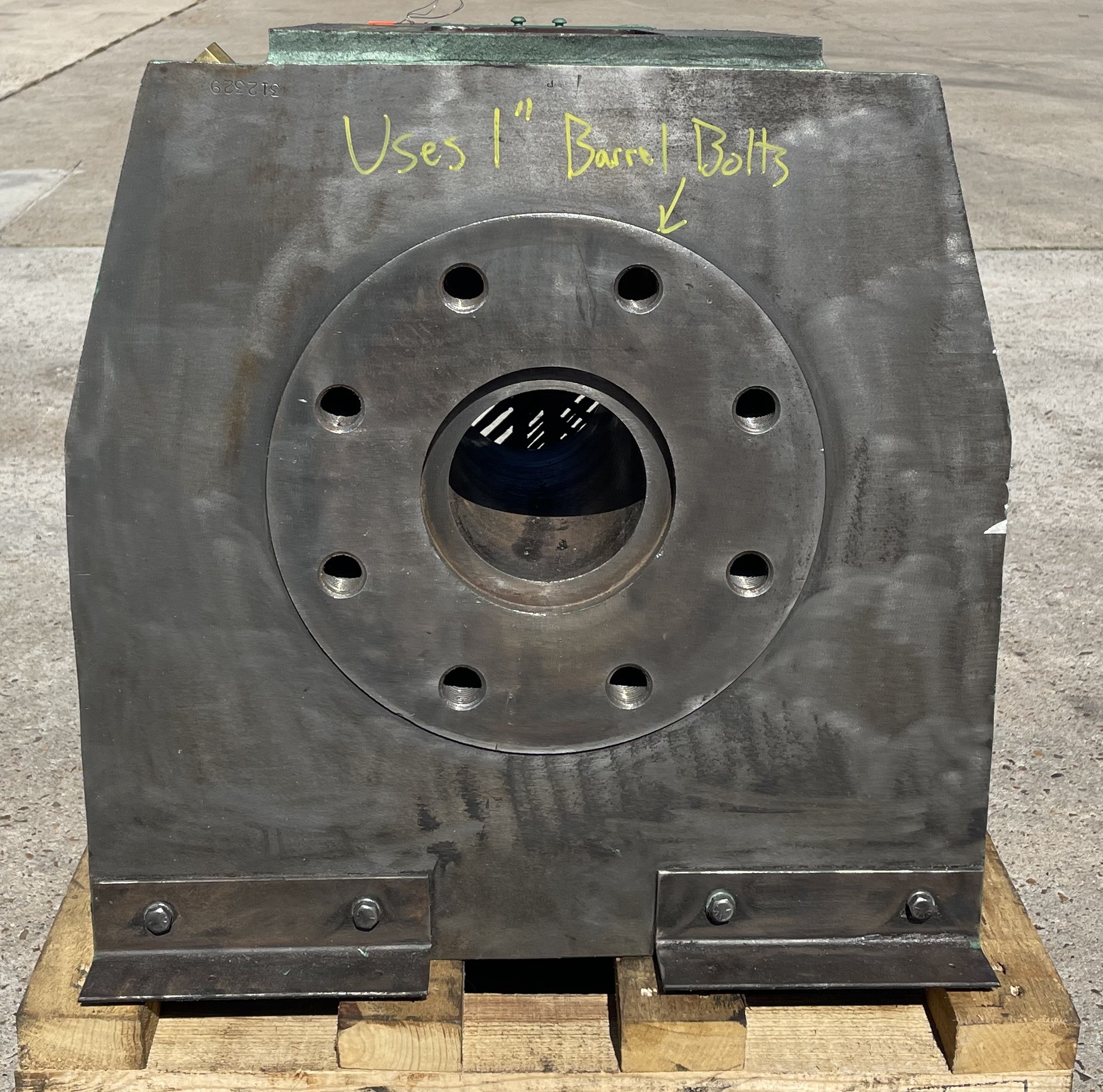

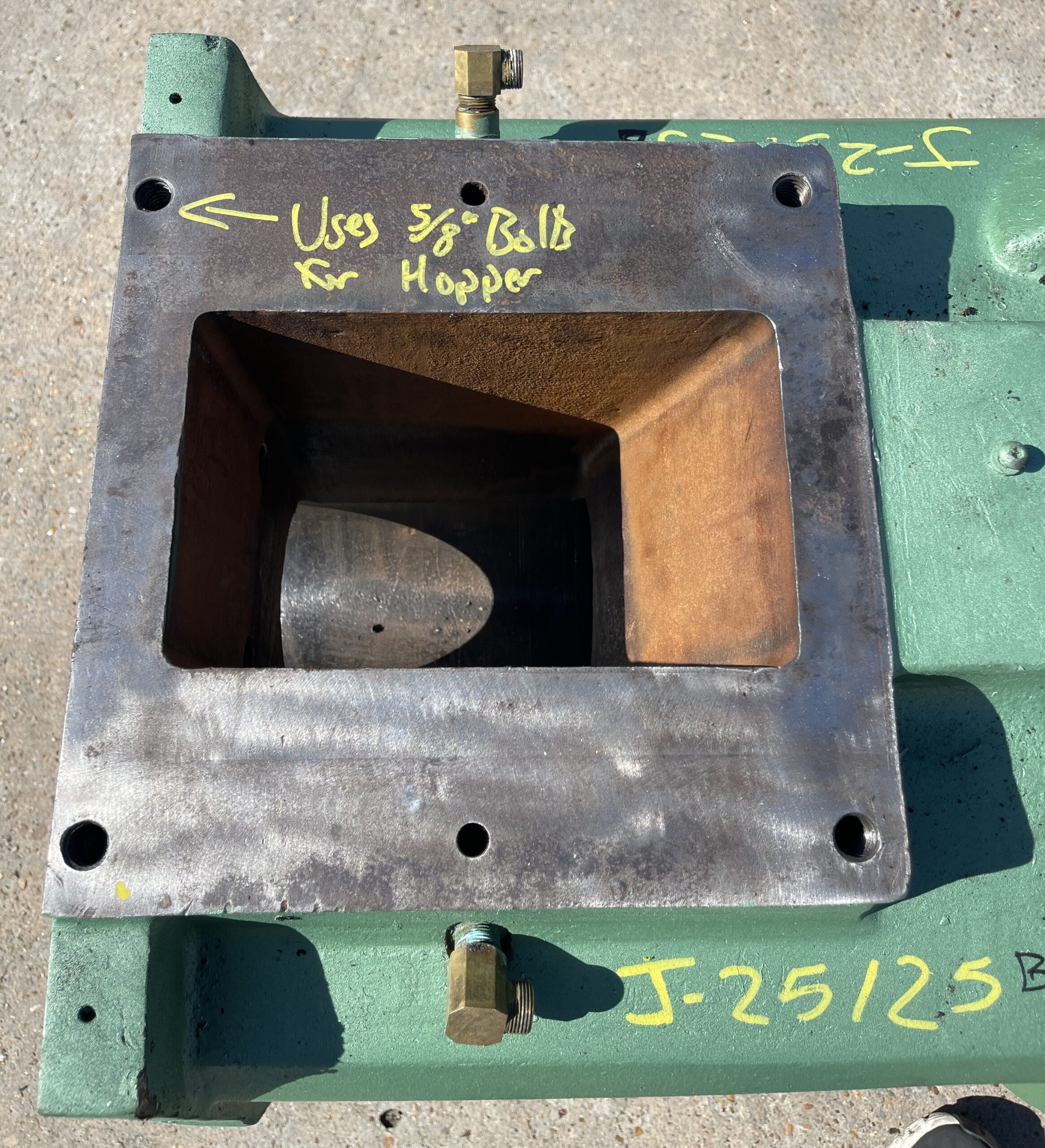

J25125B 4.5" Davis Standard Feed Throat

4.5″ Davis Standard Feed Throat

Uses a labyrinth seal which is worn and would need to be replaced. (Shaft diameter is 7.750″)

The liner measures 4.516″ but has some grooves and corrosion.  Recommend new liner and bushing replacement.

Feed throat uses 1″ barrel bolts and 5/8″ hopper bolts.

Note:  There are options for relining/repairs, call us for pricing.

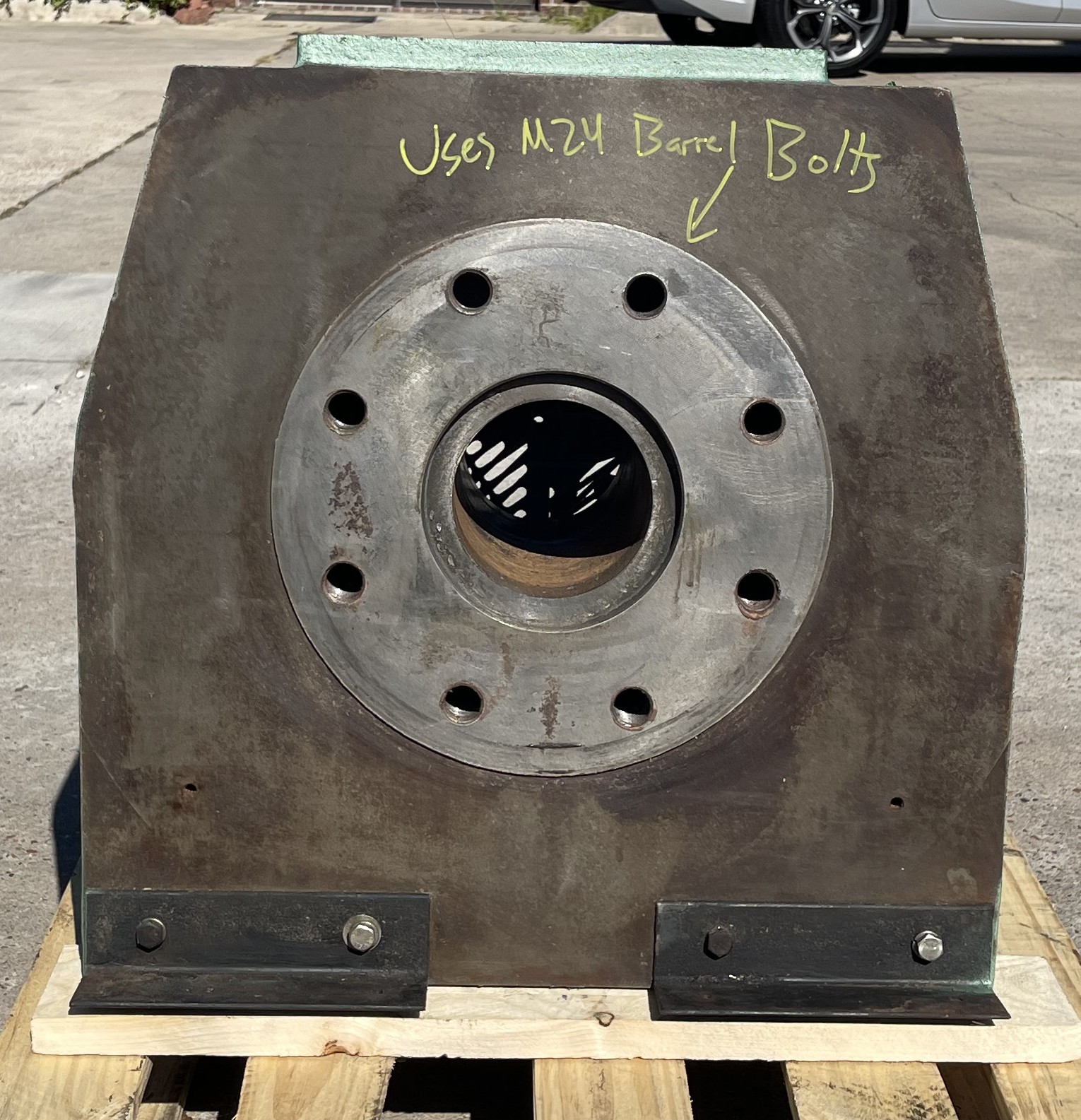

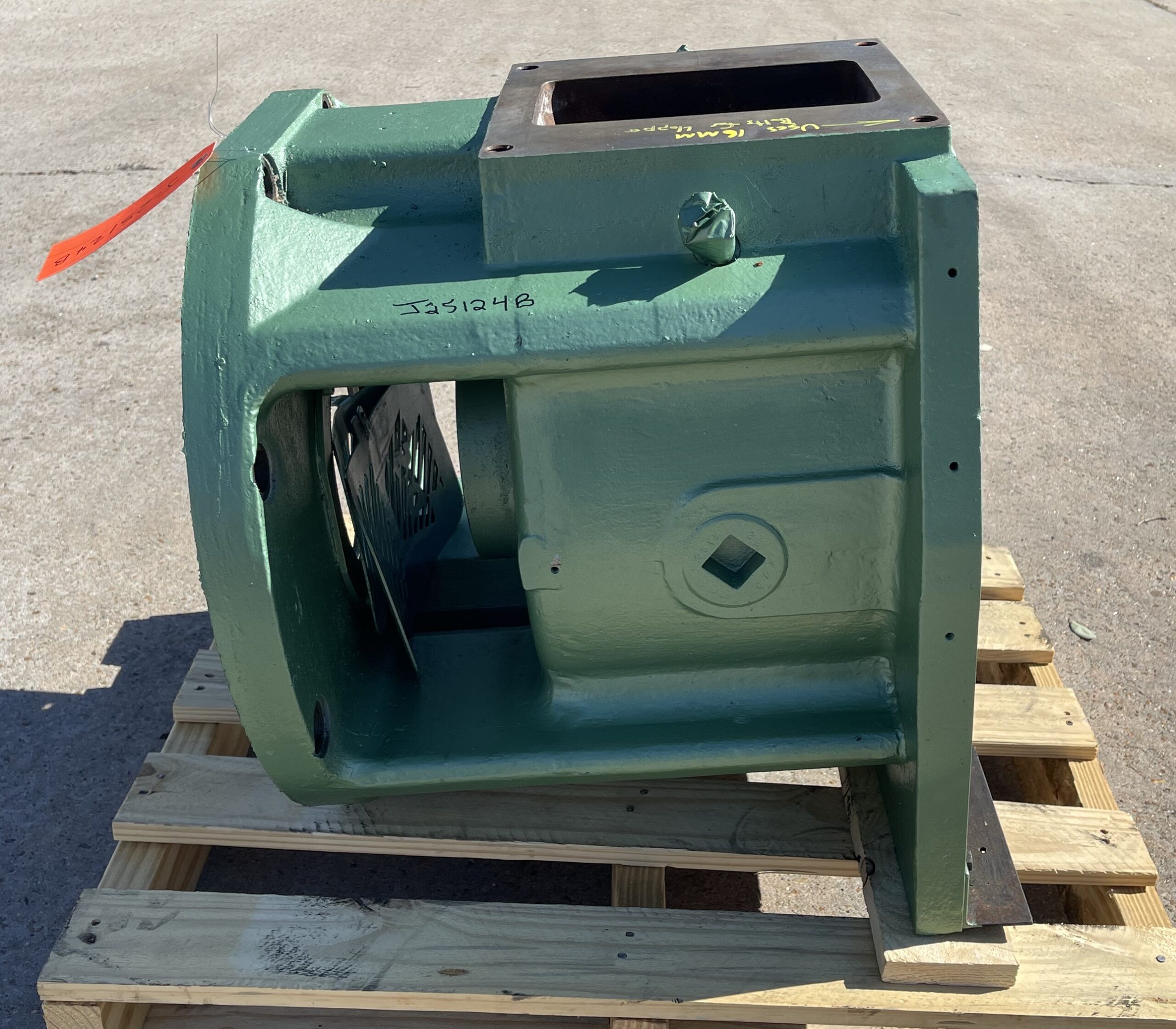

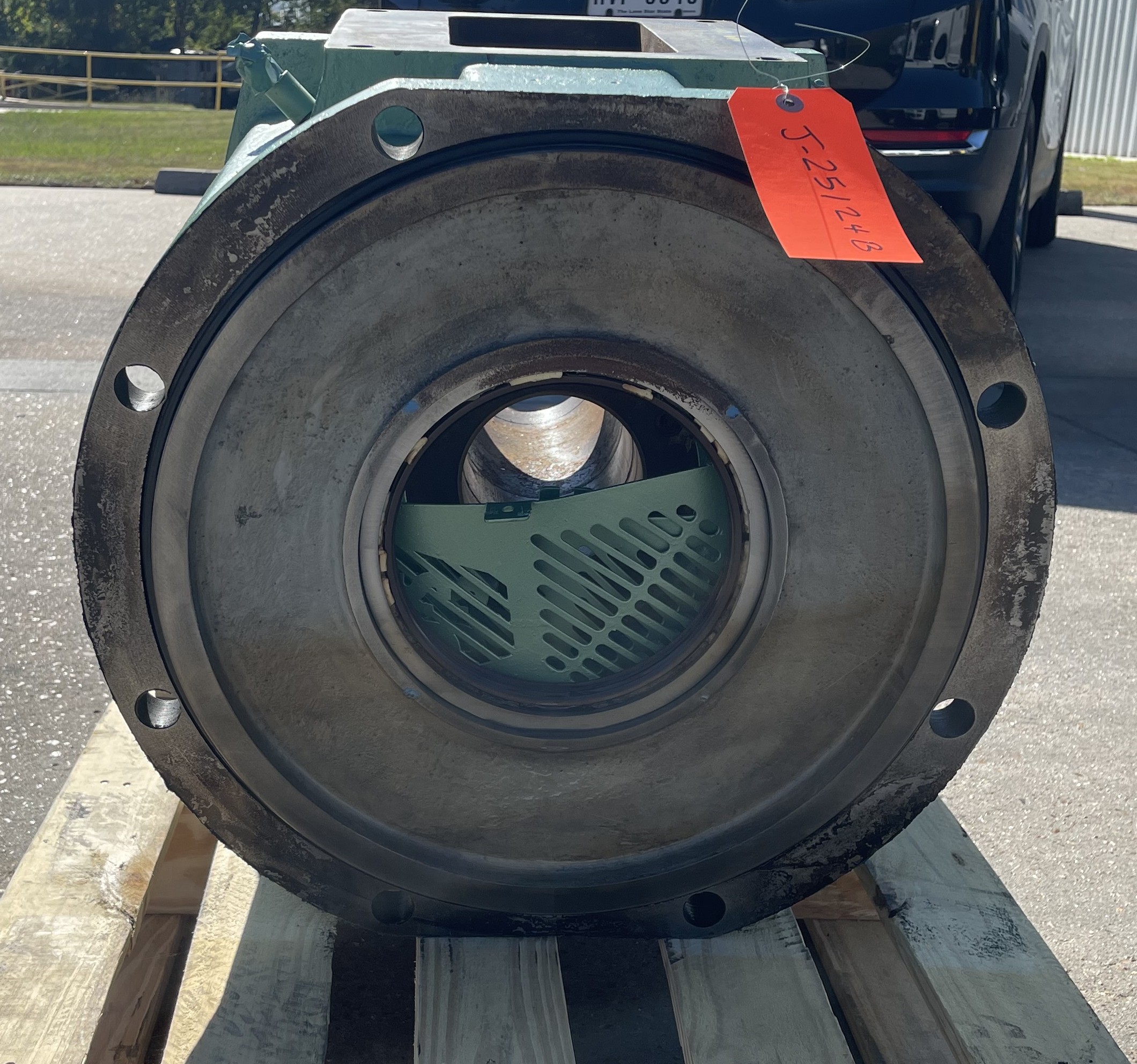

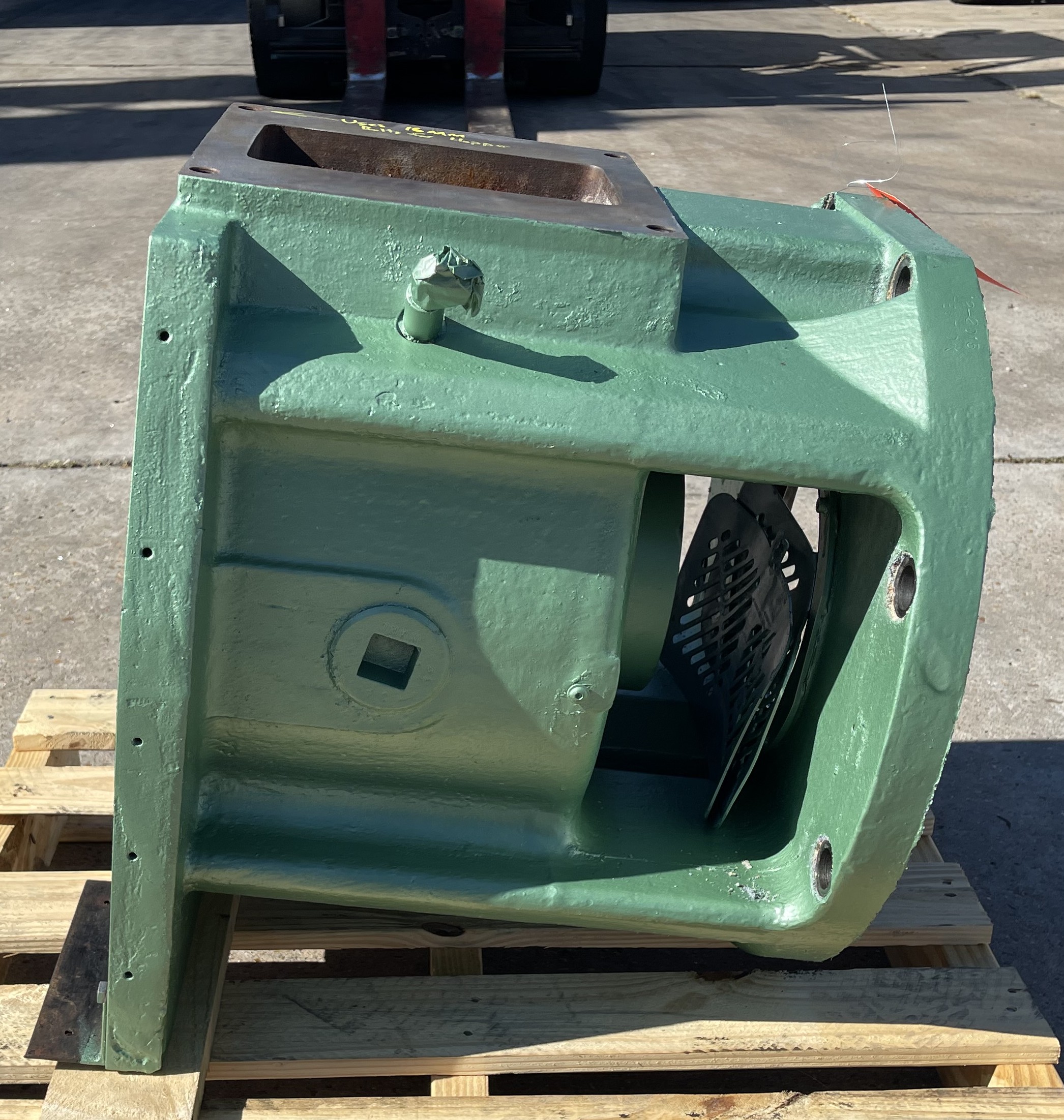

J25124B 4.5" Davis Standard Feed Throat

4.5″ Davis Standard Feed Throat

Uses oil lip seals instead of a labyrinth seal. (Shaft diameter is 7.750″)

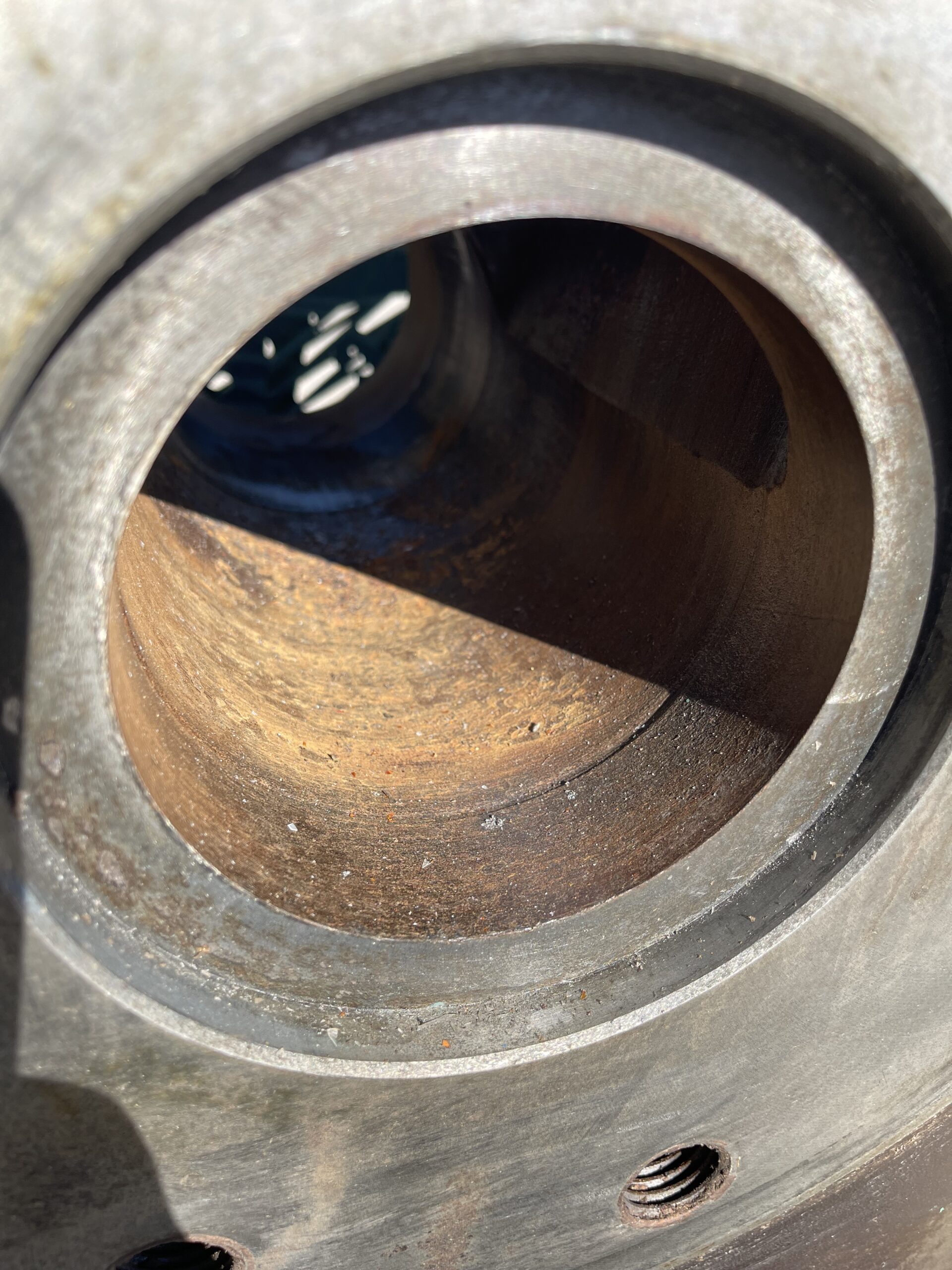

The liner measures 4.513″ but has some grooves and corrosion.  Recommend new liner and bushing replacement.

Feed throat uses M24 barrel bolts and M16 hopper bolts.

Note:  There are options for relining/repairs, call us for pricing.

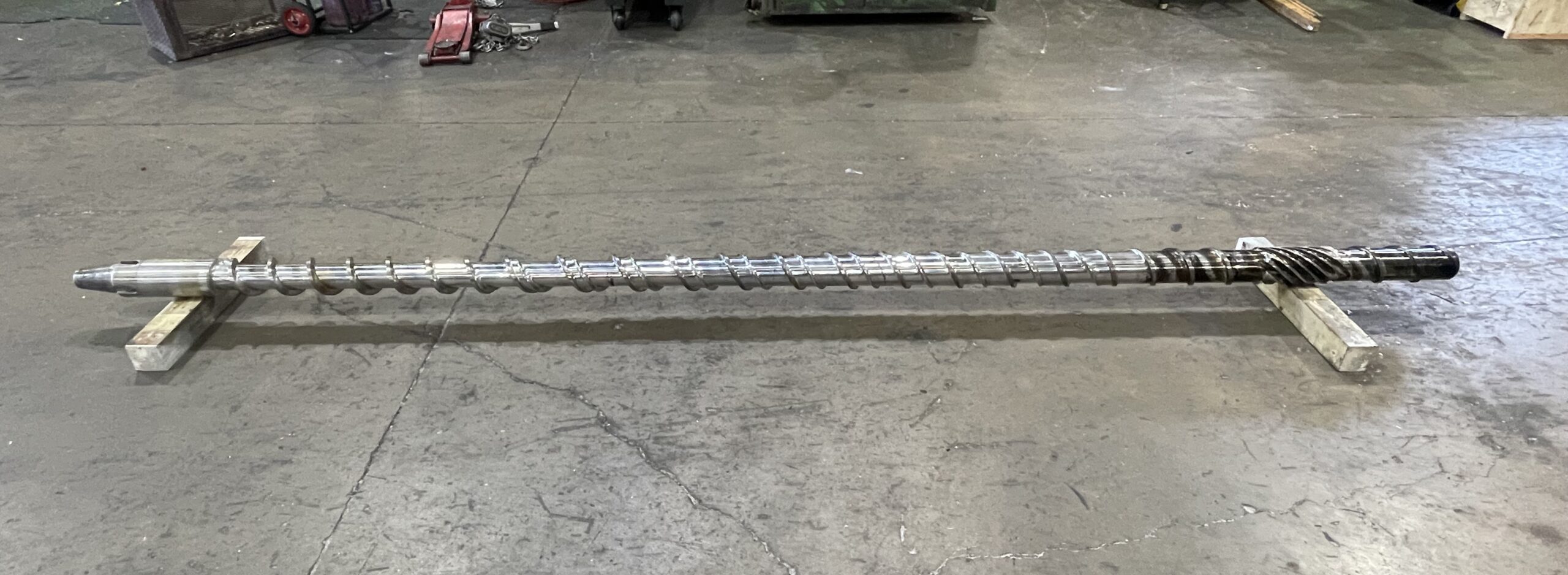

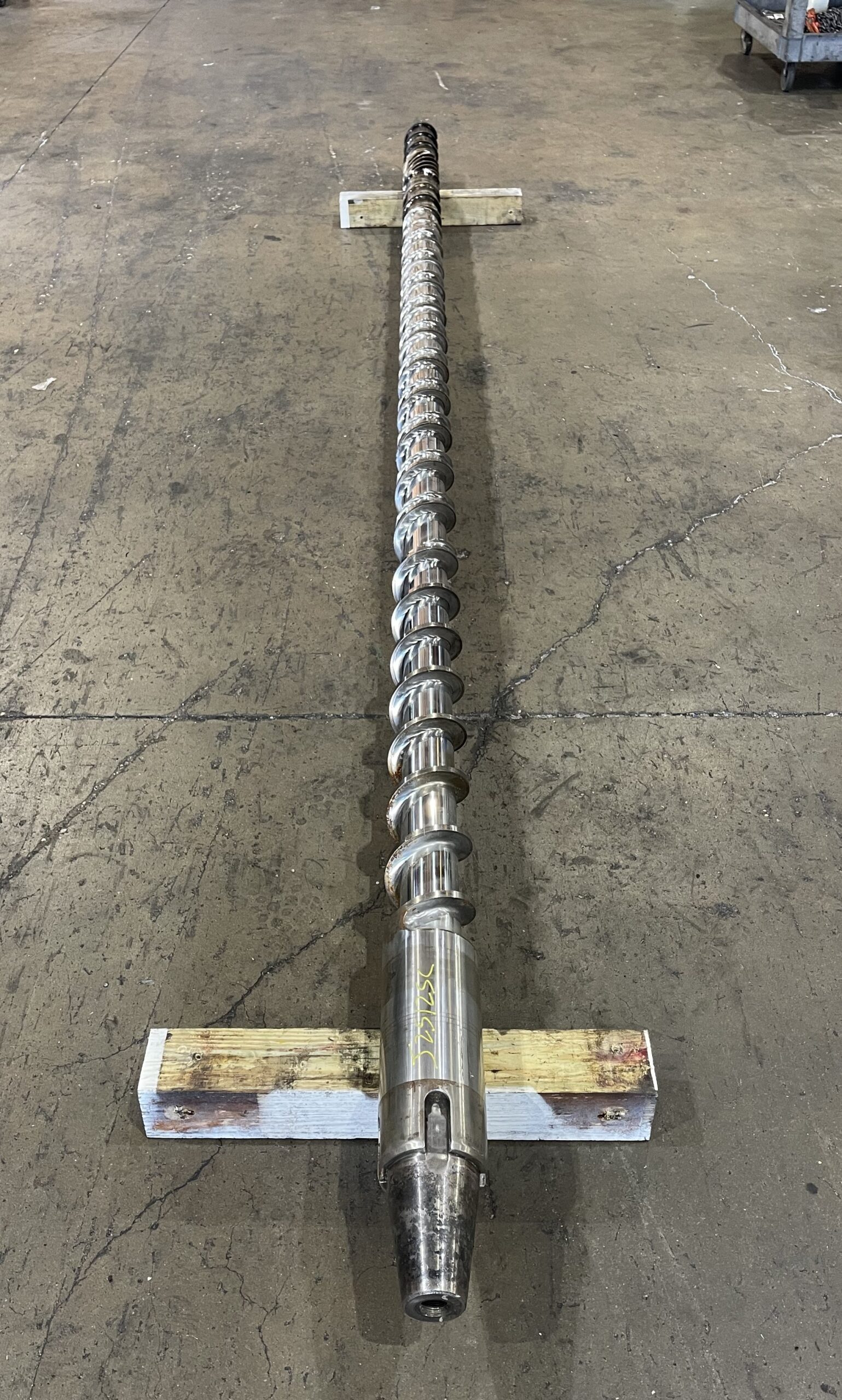

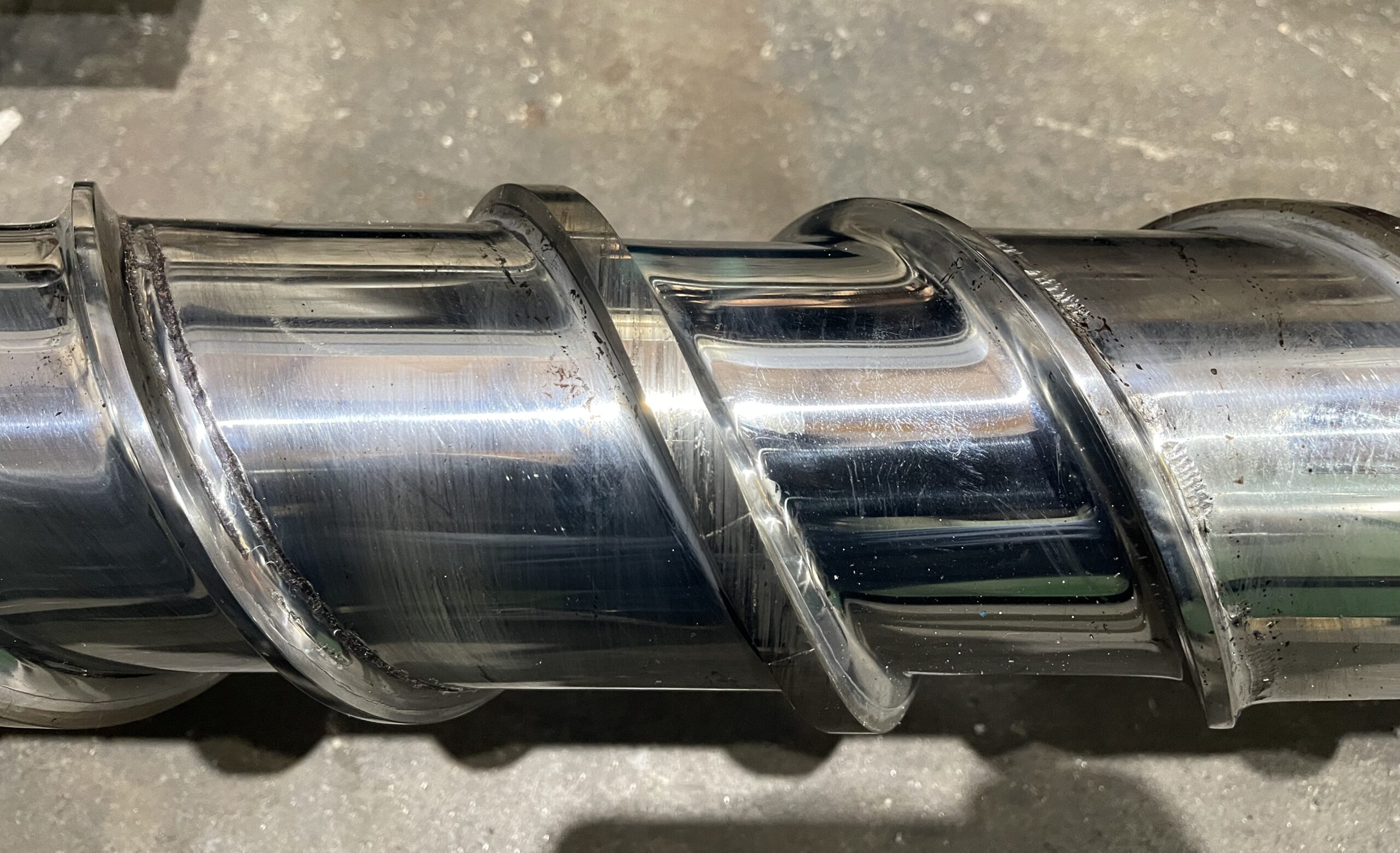

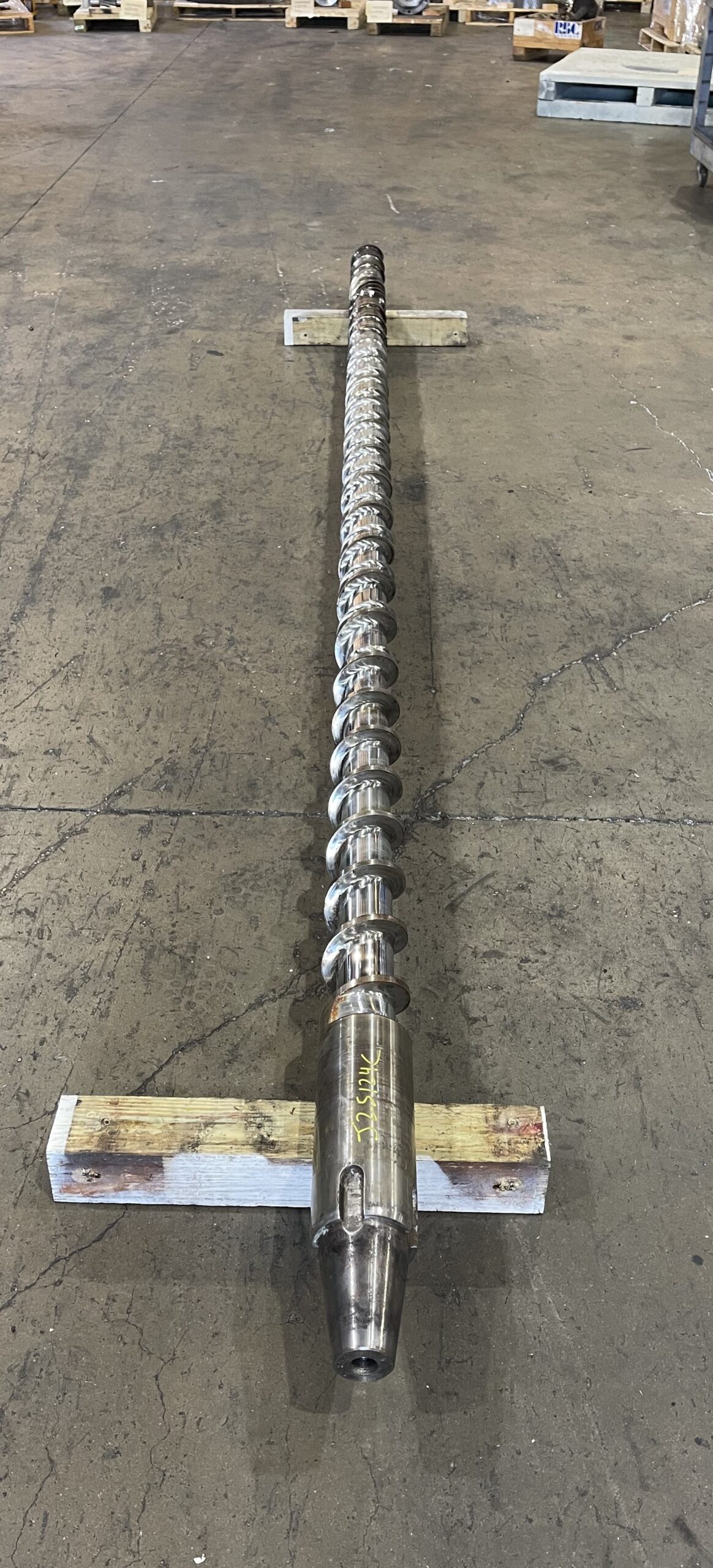

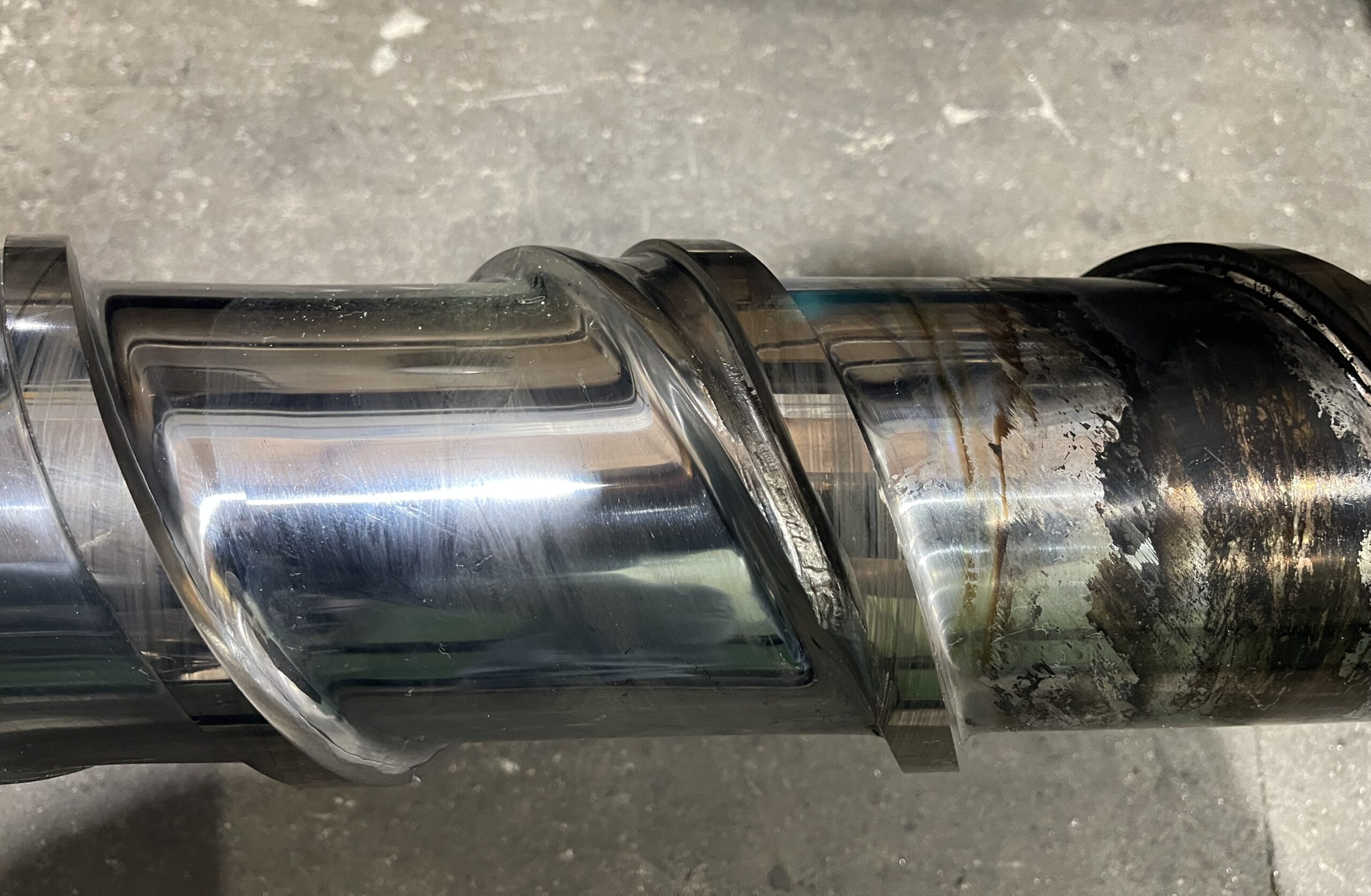

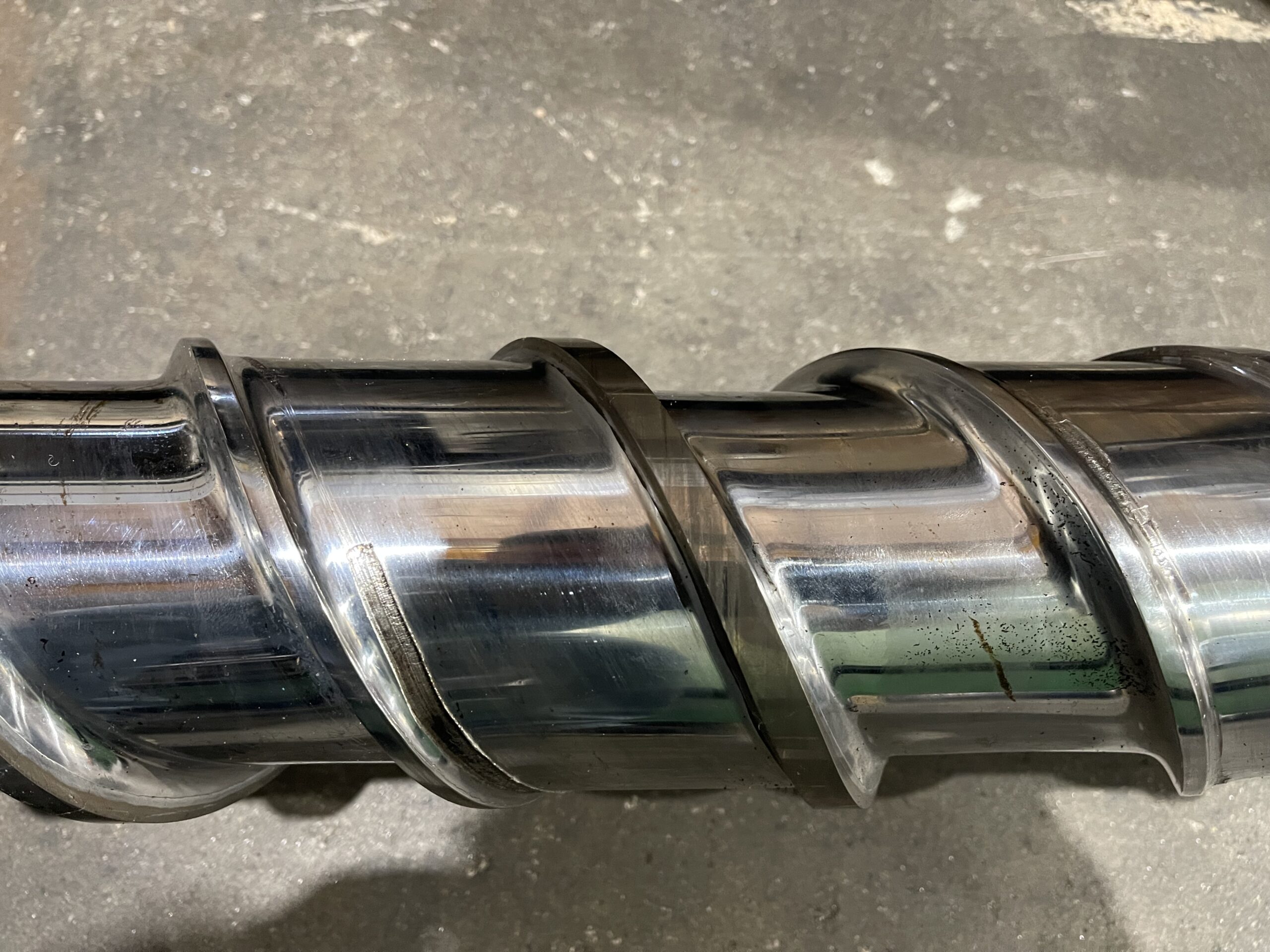

J25124C 4.5" 32/1 Davis Standard Feedscrew

Tapered 4-key drive shank

161″ overall length

144.875″ flighted length

Note:  There are options for refurbishing, call us for pricing.

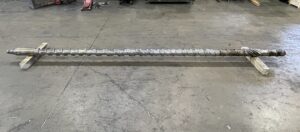

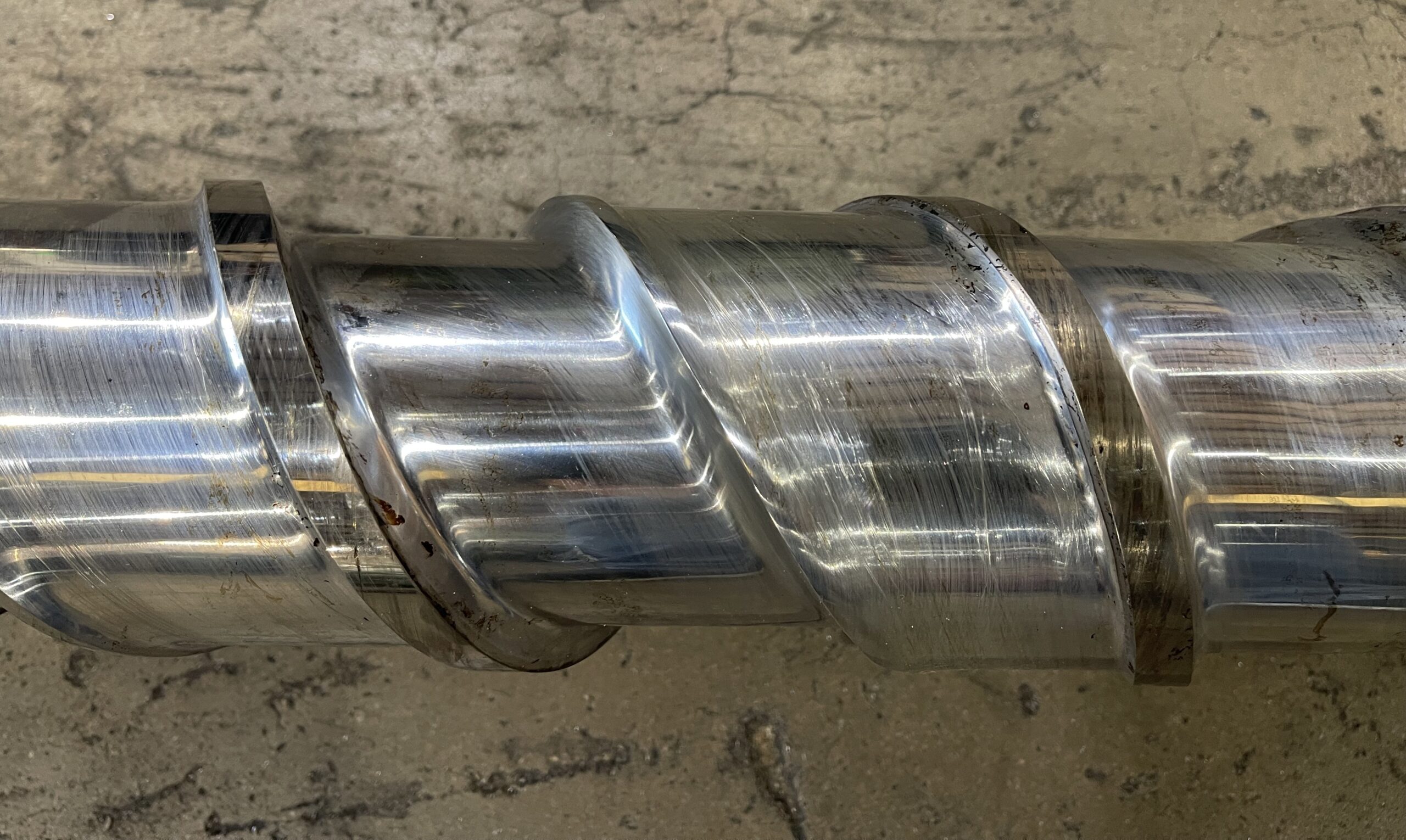

J25125C 4.5" 32/1 Davis Standard Feedscrew

Tapered 4-key drive shank

161″ overall length

144.875″ flighted length

Note:  There are options for refurbishing, call us for pricing.

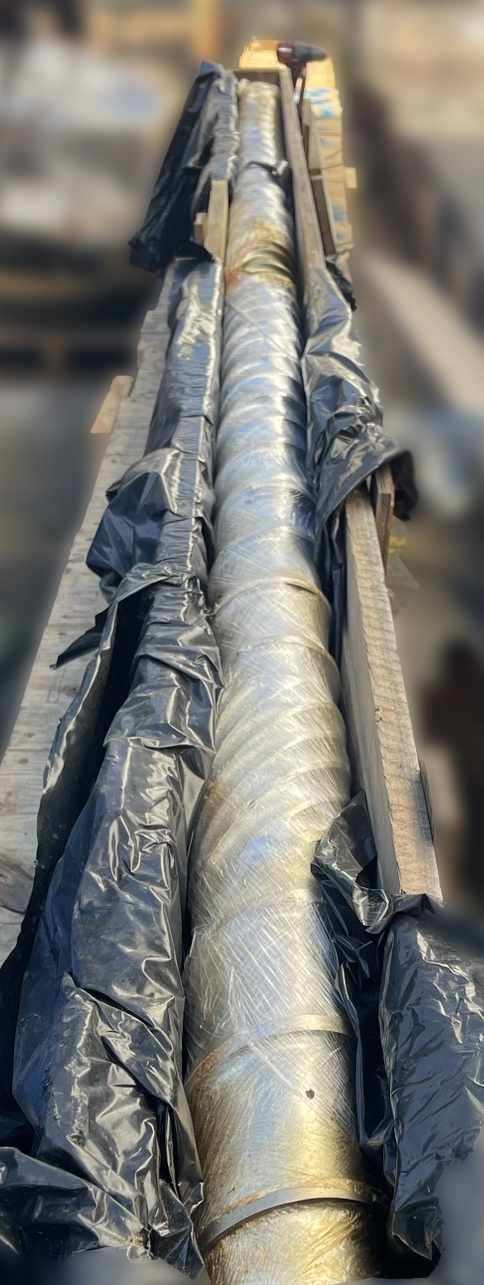

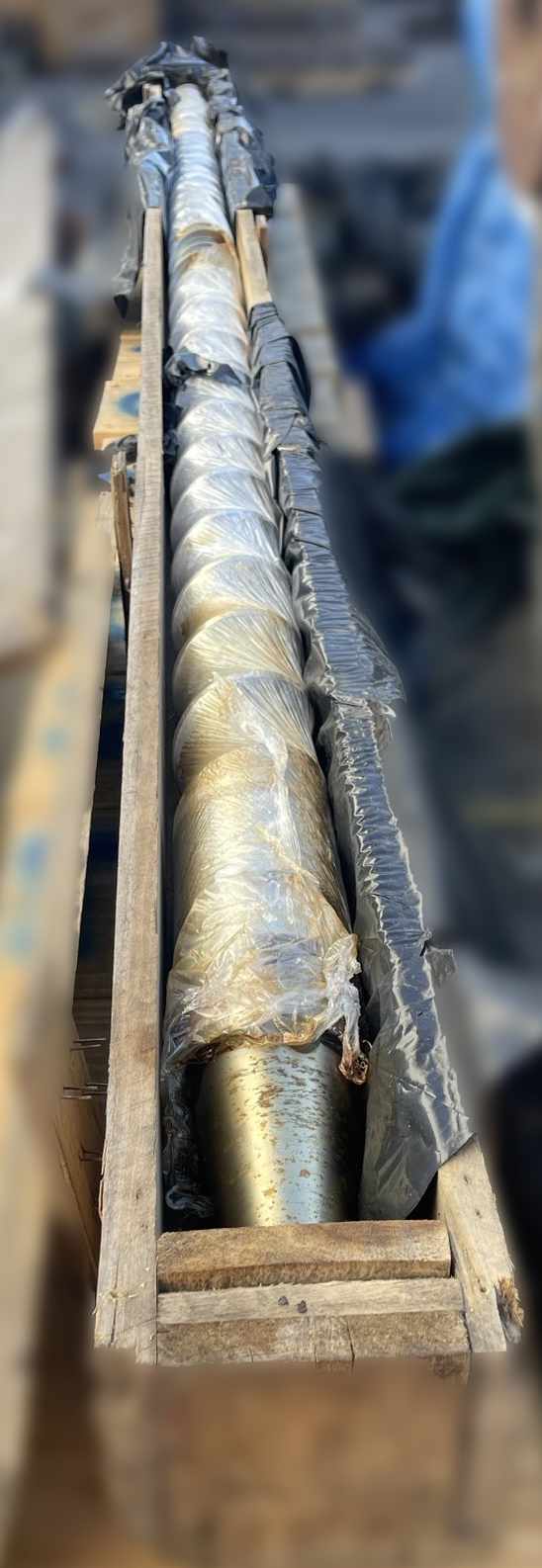

J25125D Refurbished 4.5" 32/1 Davis Standard Feedscrew

Tapered 4-key drive shank

161″ overall length

144.875″ flighted length

Baldor 250HP AC Drive Motor (gray)

Frame: 449T

J25143 50mm 28/1 Pelletizing Extruder

Gearbox

– Manufacturer: Zambello

– Model: RPU2/160E/A

Serial: L9504

– Ratio: 10/1

50HP AC Drive Motor

3 heat zones

Air-cooled heater system

Includes side feed fluff hopper system with an auger feeder underneath the hopper.

David Brown VSH-1-1 DS4
